(1.94.0/01[04]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS

Запчасти Case IH PUMA 115 (1.94.0/01[04]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

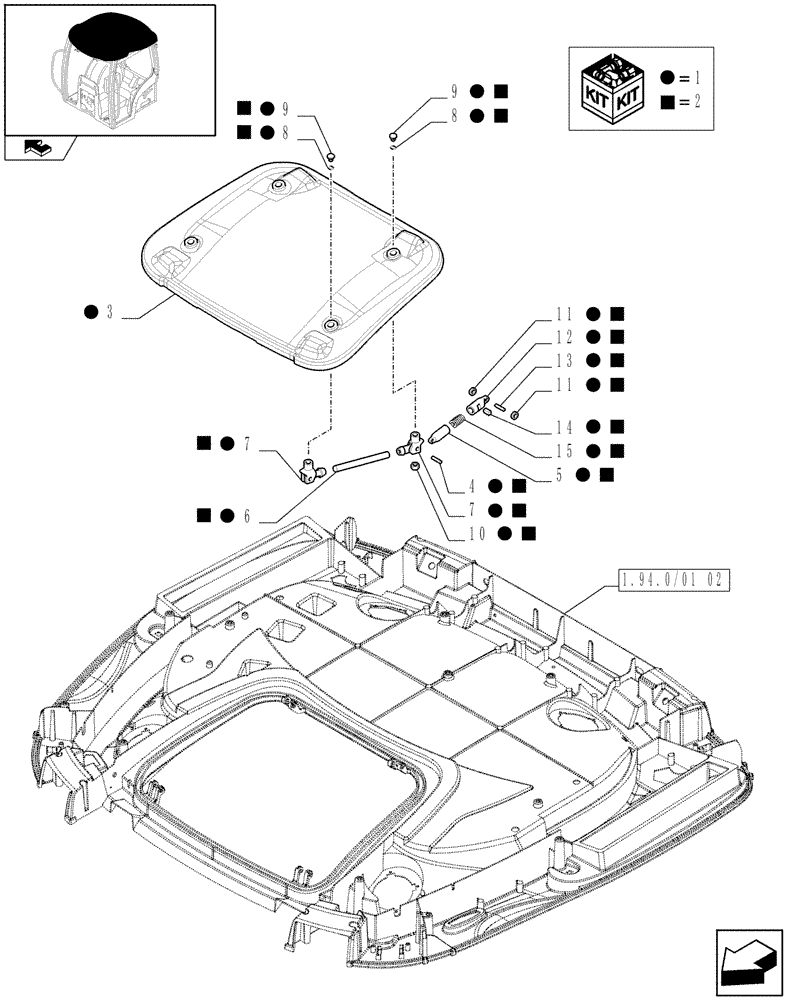

Схема запчастей Case IH PUMA 115 - (1.94.0/01[04]) - NAR ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - GLASS AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB
1
1
2
11
1
11
15
1
4
10
home
14
1.94.0/01 02
1
2
2
12
1
3
1
2
2
2
2
5
1
6
2
1
8
1
1
2
7
2
9
1
13
2
2
7
1
2
8
1
9
2
1
2
2
1
2
1
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82023410

HATCH

ASSY, Incl. 2,3

1шт.

2

82035473

HANDLE

ASSY

2шт.

3

82035472

HATCH

1шт.

4

87515655

PIN

4шт.

5

87515666

HOLDER

4шт.

6

87515660

HANDLE

2шт.

7

87515664

HINGE

4шт.

8

87515661

GASKET

4шт.

9

87515662

RIVET

4шт.

10

87515658

NUT

4шт.

11

87515656

CAP WASHER

8шт.

12

87515665

HOLDER

4шт.

13

87515657

PIN

4шт.

14

87515659

PIN

4шт.

15

87515663

SPRING

4шт.
