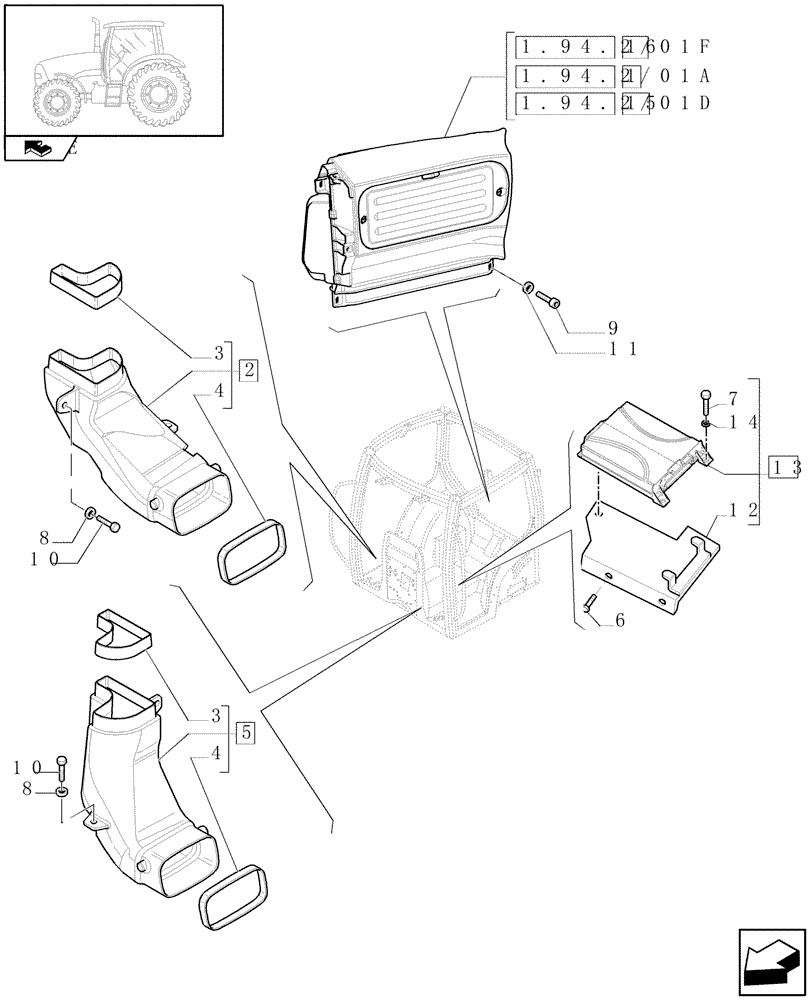

Запчасти Case IH PUMA 115 (1.94.2/01[01]) - AIR CONDITIONING WITH ATC - FAN AND VENTILATION DUCTS (VAR.330643) (10) - OPERATORS PLATFORM/CAB

1

87541400

FAN

, Serial Range: -C5923

1шт.

2

87599952

DUCT

RH, Incl. 3-4

1шт.

3

82023534

SEAL

1шт.

4

82033101

RUBBER SEAL

1шт.

5

87599953

DUCT

LH, Incl. 3-4

1шт.

6

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

7

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

1шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

2шт.

10

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

11

17094714

LOCK WASHER,M6 x 13

2шт.

12

87540518

SUPPORT

1шт.

13

84214115

ECU

1шт.

14

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

1шт.

15

87663986

HOUSING

ASSY, Serial Range: D5923-C6119

1шт.

16

87651397

BLOWER

ASSY, Start Serial: D6119

1шт.
