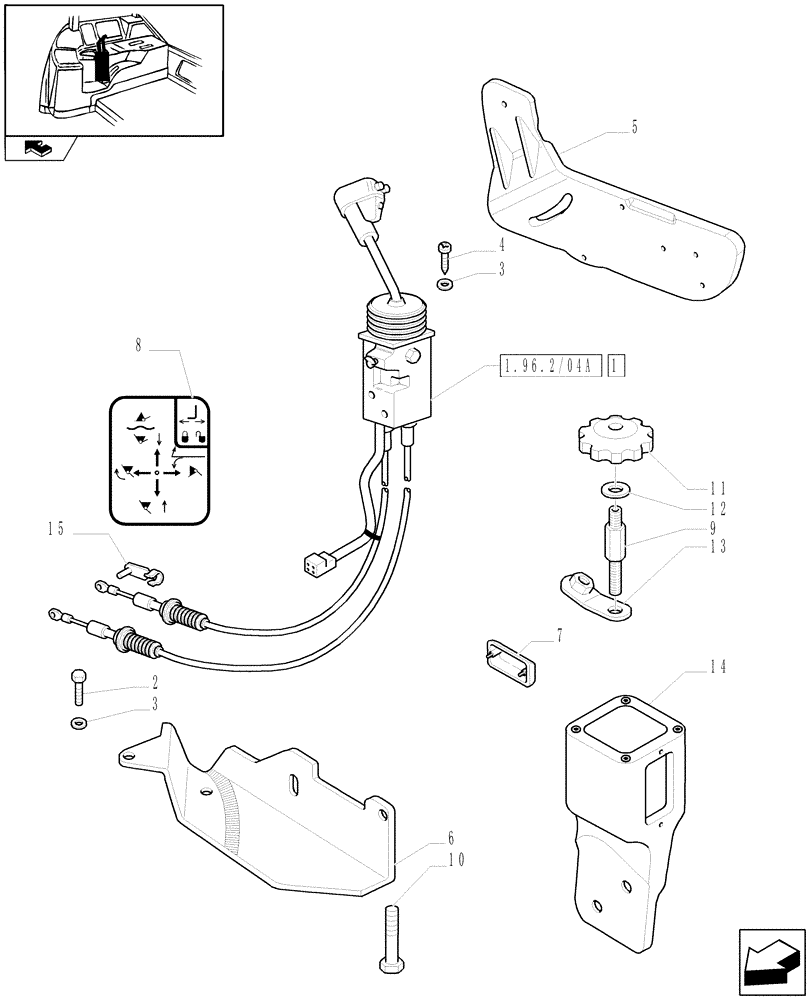

Запчасти Case IH PUMA 115 (1.96.2/04) - EUROPEAN LOADER READY WITH 2 ELEMENTS MID MOUNT VALVES - JOYSTICK (VAR.332821) (10) - OPERATORS PLATFORM/CAB

1

82037036

JOYSTICK

ASSY

1шт.

2

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

2

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

4

83990199

SCREW,Pan, M6 x 20mm, Cl 4.8

4шт.

5

82037484

SUPPORT

1шт.

6

82026112

BRACKET

1шт.

7

82033594

COVER

1шт.

8

82035732

DECAL

1шт.

9

82032760

SPACER,7/16" - 20

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

82032632

KNOB

1шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

13

82035556

BRACKET

1шт.

14

82033563

SUPPORT

1шт.

15

82022510

PIN,4.72mm OD x 15.5mm L

2шт.
