(1.40. 6/14[02]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - PIPES (VAR.330425)

Запчасти Case IH PUMA 125 (1.40. 6/14[02]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - PIPES (VAR.330425) (04) - FRONT AXLE & STEERING

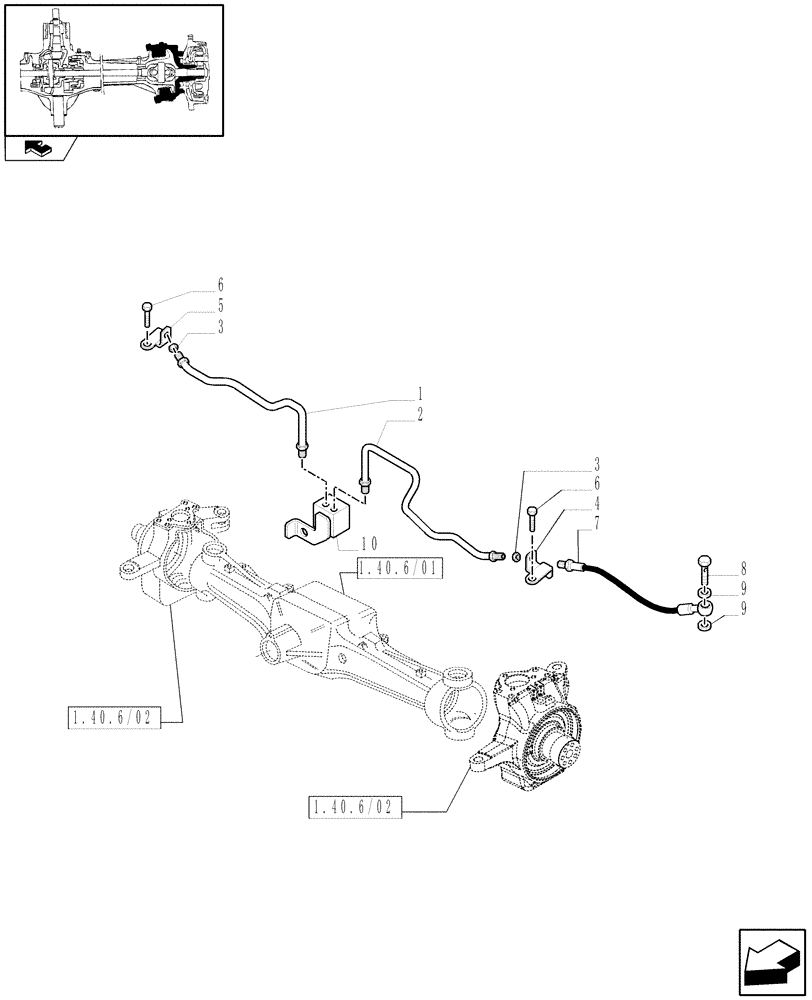

Схема запчастей Case IH PUMA 125 - (1.40. 6/14[02]) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. L/ST. SENSOR W/BRAKES - PIPES (VAR.330425) (04) - FRONT AXLE & STEERING
10
9
5
6
2
3
9
6
7
home
1
4
8
3
1.40.6/01
1.40.6/02
1.40.6/02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87602113

BRAKE LINE

RH

1шт.

2

87602115

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

87571109

BRACKET

RH

1шт.

6

86637974

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12x1.25x22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87611523

BRACKET

1шт.
