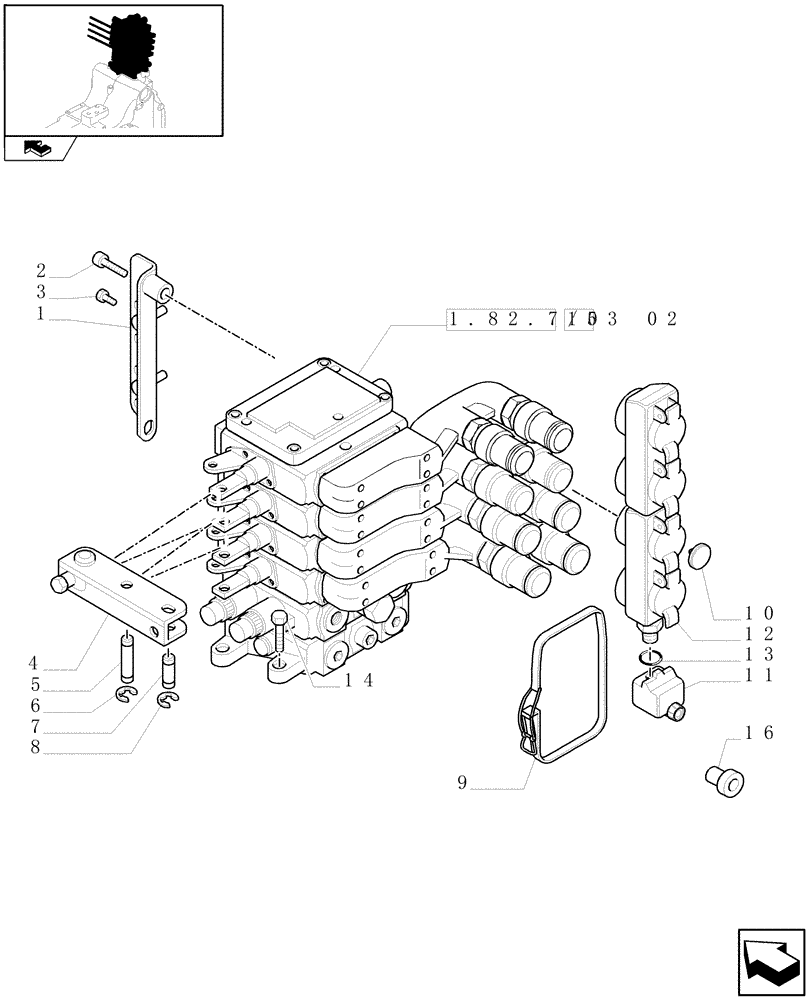

Запчасти Case IH PUMA 125 (1.82.7/03[01]) - 4 MECHANICAL REAR REMOTE CONTROL VALVES - DISTRIBUTOR, COVER AND OIL COLLECTOR - C6788 (VAR.333845) (07) - HYDRAULIC SYSTEM

1

87358965

STOP

1шт.

2

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

4шт.

8

11065676

SNAP RING,M8, Ext

8шт.

9

82031973

SPRING CLIP

1шт.

10

82029895

DISC,20mm D, Black

Black

8шт.

11

84161329

BOTTLE

2шт.

12

87733580

DUST CAP

Incl. 10

2шт.

13

82029356

SEAL,20.00mm OD x 3.00mm

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

87311423

CONTROL VALVE

ASSY

1шт.

2 Not Configurable + 2 Configurable Control Valves

1шт.

16

82035752

PLASTIC PLUG,7.00mm, 11.00mm OD, 5.5mm D

4шт.
