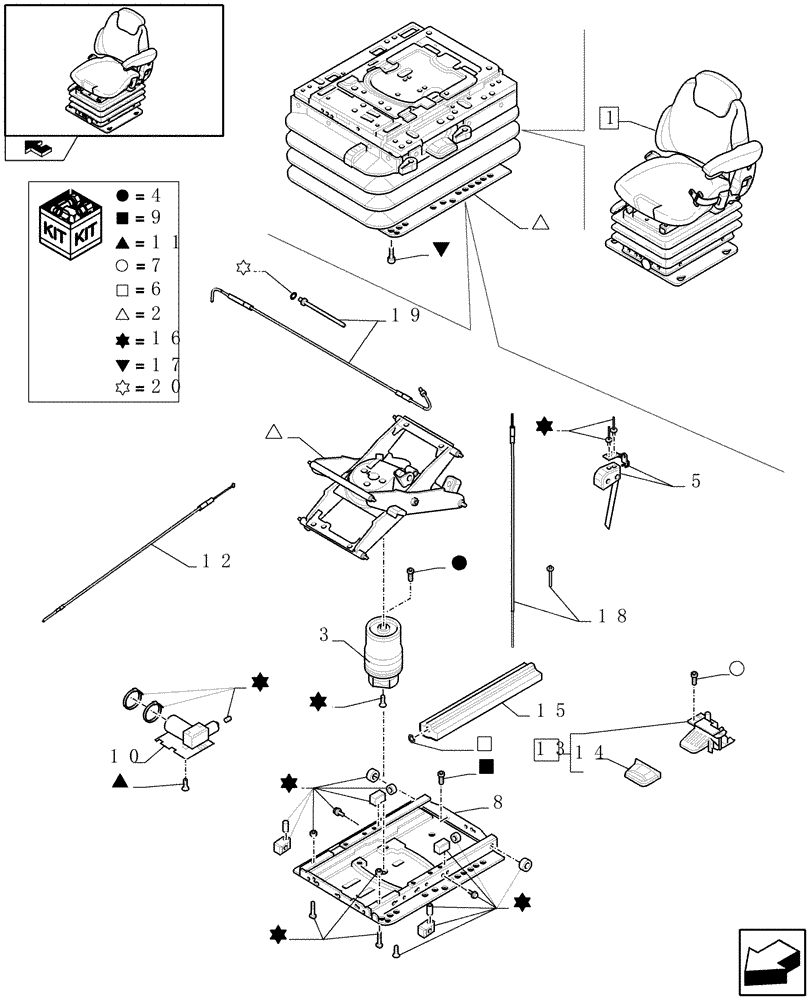

Запчасти Case IH PUMA 125 (1.93.3/02A[05]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

84171102

SEAT

ASSY

1шт.

2

84191066

SUSPENSION

ASSY, Incl. 17

1шт.

3

84190972

SHOCK ABSORBER

Incl. 4, 16

1шт.

4

84191012

REPAIR KIT

Incl. 16

1шт.

5

84190962

KIT

1шт.

6

84191086

REPAIR KIT

1шт.

7

84191017

REPAIR KIT

1шт.

8

84190976

PLATE

Incl. 9, 16

1шт.

9

84191014

REPAIR KIT

1шт.

10

84190980

AIR COMPRESSOR

Incl. 11, 16

1шт.

11

84191008

REPAIR KIT

1шт.

12

84190997

BOWDEN CONTROL

1шт.

13

345107A1

LEVER

Incl. 7

1шт.

14

84191000

HANDLE

1шт.

15

84191082

SERVICE KIT

Incl. 6

1шт.

16

84190975

REPAIR KIT

1шт.

17

84191020

REPAIR KIT

1шт.

18

84191077

TUBE

1шт.

19

84191079

KIT

Incl. 20

1шт.

20

84191016

REPAIR KIT

1шт.
