(88.035.03[02]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN

Запчасти Case IH PUMA 130 (88.035.03[02]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN (88) - ACCESSORIES

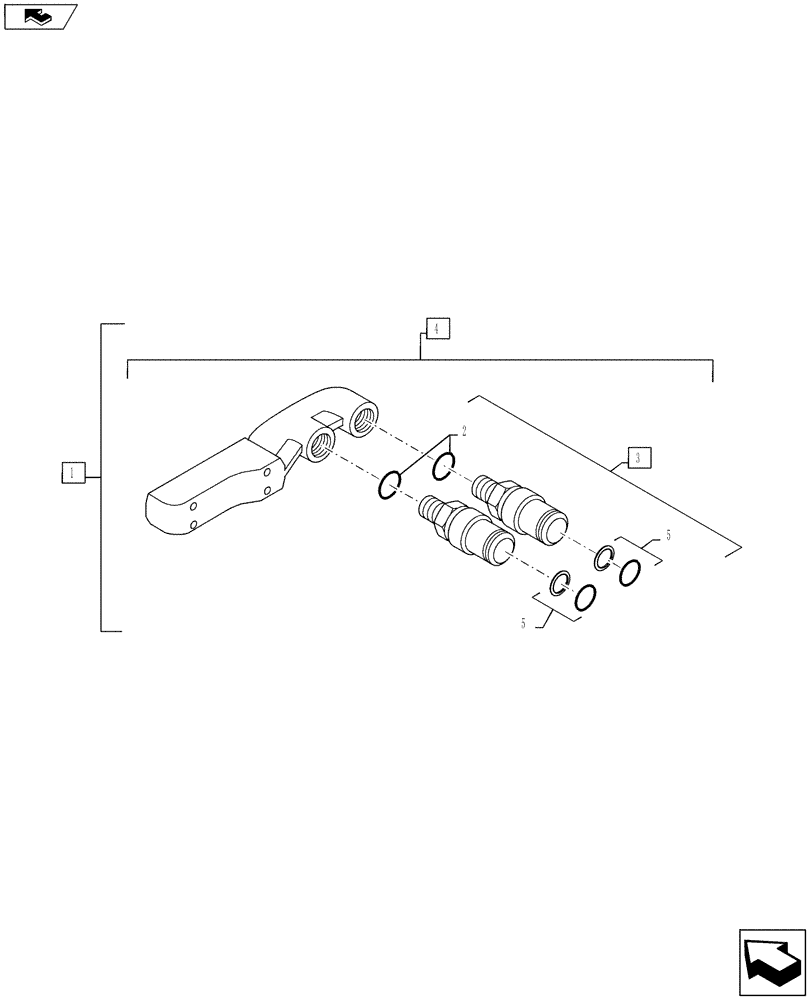

Схема запчастей Case IH PUMA 130 - (88.035.03[02]) - DIA KIT, QUICK COUPLERS GROUP - BREAKDOWN (88) - ACCESSORIES
2
1
home
4
5
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719411134

DIA KIT, TRACTOR

One Additional Remote Electrohydraulic Configuration for GARU, Incl 2 - 5. Kit Includes figures 88.035.03 01 and 02

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

3

87381944

COUPLING, QUICK, FEM

Incl 2, 5

8шт.

4

87381965

QUICK MALE COUPLING

Incl 2, 3, 5

1шт.

5

87382012

SEAL KIT

Incl O-Rings and Backup Ring

8шт.
