(88.082.01[01]) - DIA KIT, EUROPEAN LOADER READY - SUPPORTS

Запчасти Case IH PUMA 130 (88.082.01[01]) - DIA KIT, EUROPEAN LOADER READY - SUPPORTS (88) - ACCESSORIES

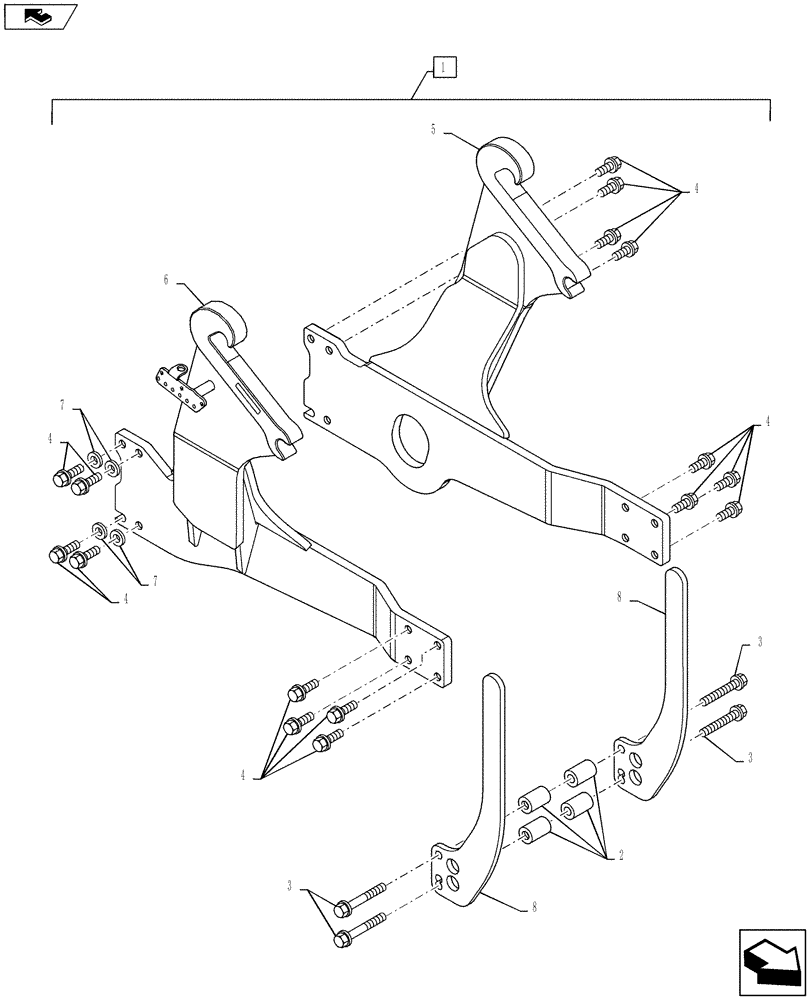

Схема запчастей Case IH PUMA 130 - (88.082.01[01]) - DIA KIT, EUROPEAN LOADER READY - SUPPORTS (88) - ACCESSORIES
3
6
home
4
4
5
4
4
7
8
2
7
3
3
1
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719705034

DIA KIT, TRACTOR

Loader Ready, Incl 2 - 8. Incl Parts on Figures 88.082.01 01 - 04

1шт.

2

47057794

SPACER,22mm ID x 42mm OD x 70mm L

4шт.

3

86639035

BOLT,Hex, M20 x 110mm, Cl 10.9, Full Thd

4шт.

4

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

16шт.

5

87493266

FRAME

LH

1шт.

6

84326857

FRAME

RH

1шт.

7

47057709

SPACER,22mm ID x 42mm OD x 10mm L

4шт.

8

87652548

BRACKET

2шт.
