(90.116.04[03]) - REAR FENDERS - MUDGUARD, RH

Запчасти Case IH PUMA 130 (90.116.04[03]) - REAR FENDERS - MUDGUARD, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

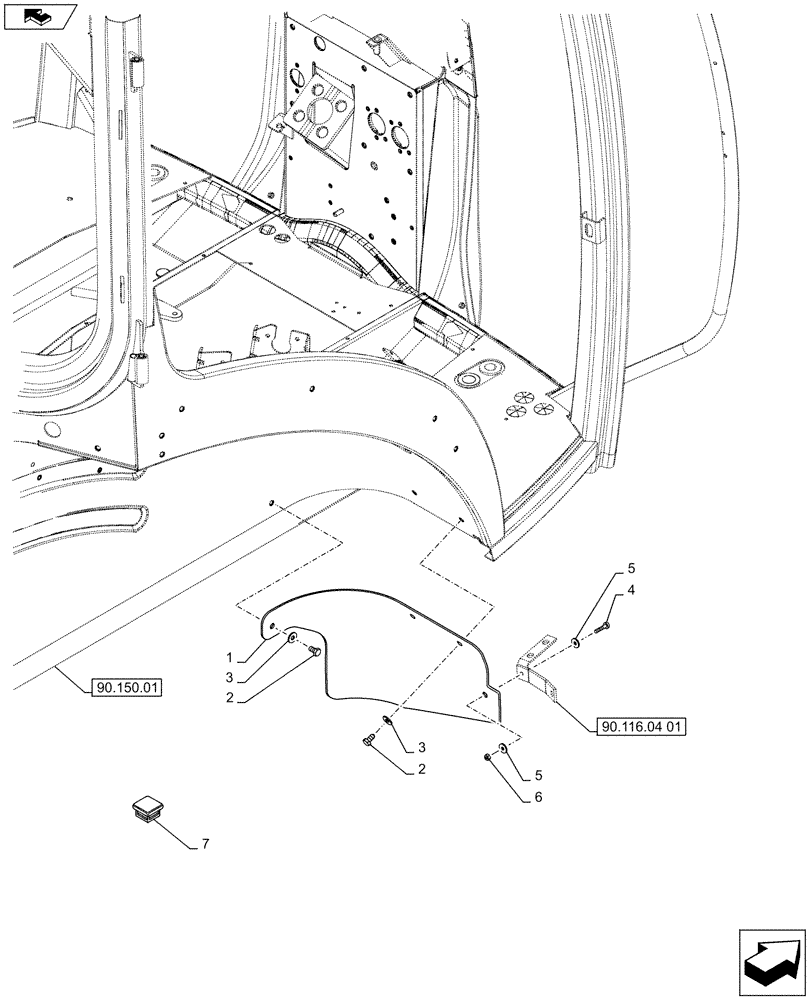

Схема запчастей Case IH PUMA 130 - (90.116.04[03]) - REAR FENDERS - MUDGUARD, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
90.150.01
5
6
7
3
home
3
4
90.116.04 01
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310916

MUDFLAP

RH

1шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

4

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

5

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

6

15896211

NUT,M6, Cl 8

1шт.

7

82033880

PLUG,70mm ID

1шт.
