(1.94.0/02[01A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - D5936

Запчасти Case IH PUMA 140 (1.94.0/02[01A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - D5936 (10) - OPERATORS PLATFORM/CAB

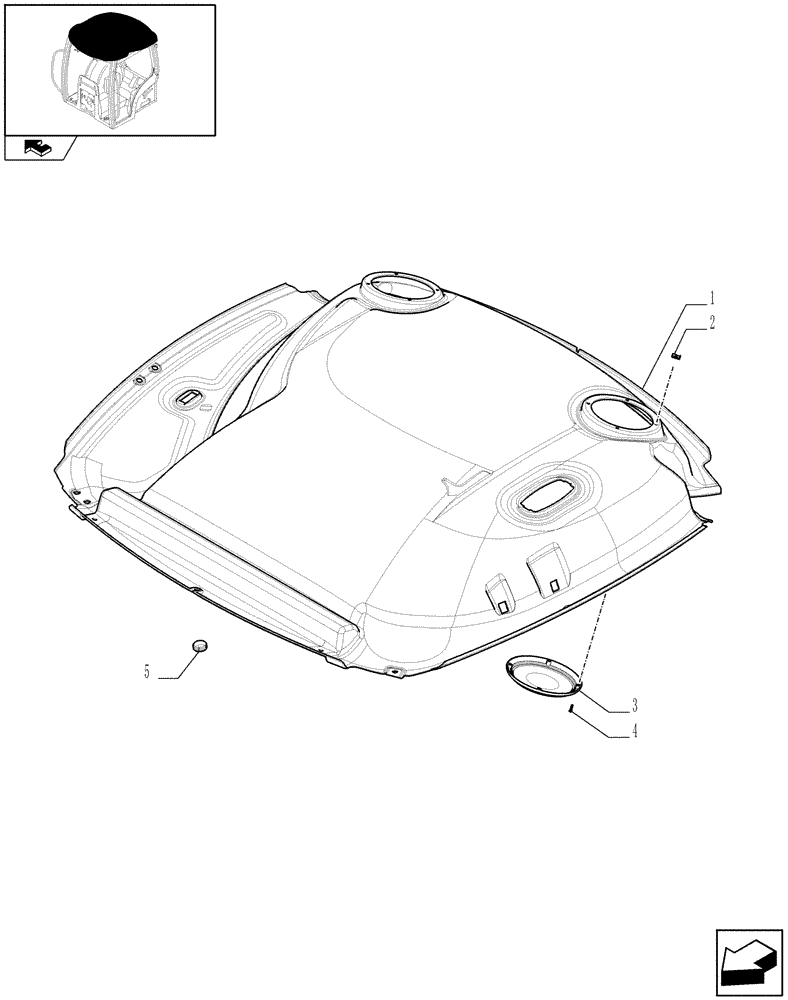

Схема запчастей Case IH PUMA 140 - (1.94.0/02[01A]) - ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER - D5936 (10) - OPERATORS PLATFORM/CAB
3
2
home
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87725989

HEADLINER

, Serial Range: -C6338

1шт.

1

87621050

ROOF LINING

, Start Serial: D6338

1шт.

2

81872135

NUT,Retaining, M4.20

8шт.

3

82022875

GRILLE,185mm OD

2шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

87725990

PLUG

, Start Serial: C6338

1шт.
