(1.81.9/01[01]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - C6778 (VAR.330926)

Запчасти Case IH PUMA 140 (1.81.9/01[01]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - C6778 (VAR.330926) (07) - HYDRAULIC SYSTEM

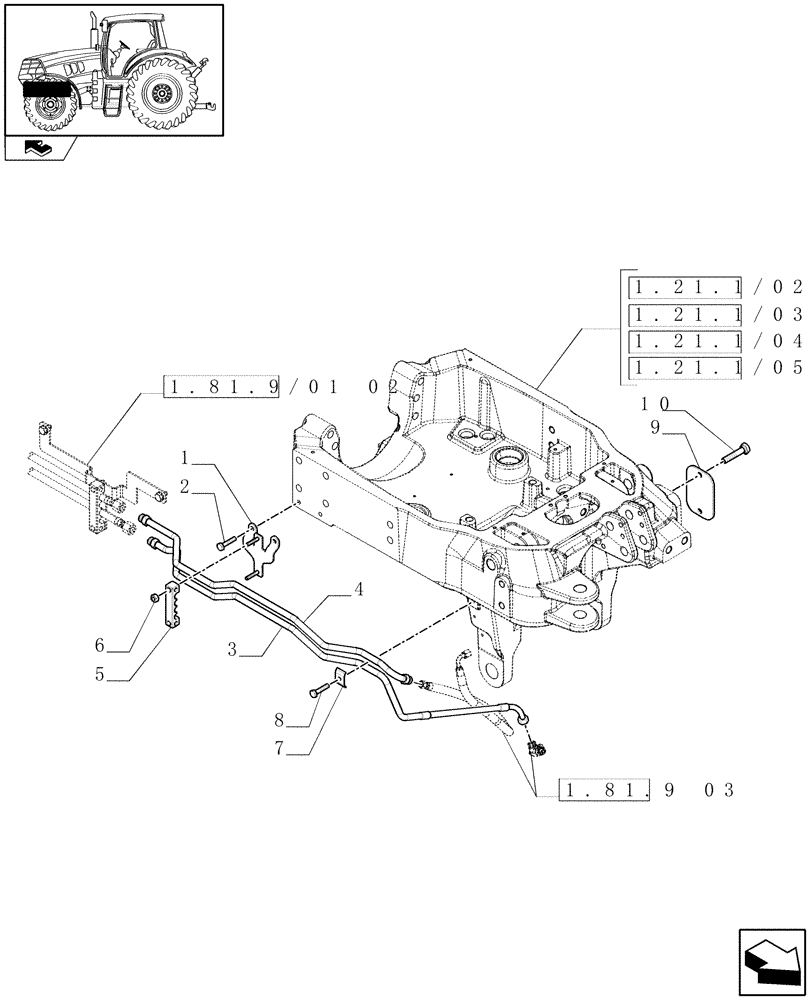

Схема запчастей Case IH PUMA 140 - (1.81.9/01[01]) - TUBES FOR FRONT HPL FROM MECHANICAL REMOTE VALVES - C6778 (VAR.330926) (07) - HYDRAULIC SYSTEM
9
8
10
1.21.1/02 01
1.81.9/01 02
1.21.1/05 01
1.21.1/04 01
1.21.1/03 01
4
1
1.81.9 03
home
2
6
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84135228

SUPPORT

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

3

84214782

PRESSURE PIPE

Lift

1шт.

4

84217401

PRESSURE PIPE

Lower

1шт.

5

87579043

CLAMP,4 Hoses

1шт.

6

16102111

NUT,M8 x 1.25, Cl 8, LH

2шт.

7

47057074

CLAMP,48.6mm x 30mm

1шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

9

87643929

PLATE

1шт.

10

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
