(1.89.5/03) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY) (VAR.330942)

Запчасти Case IH PUMA 140 (1.89.5/03) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY) (VAR.330942) (09) - IMPLEMENT LIFT

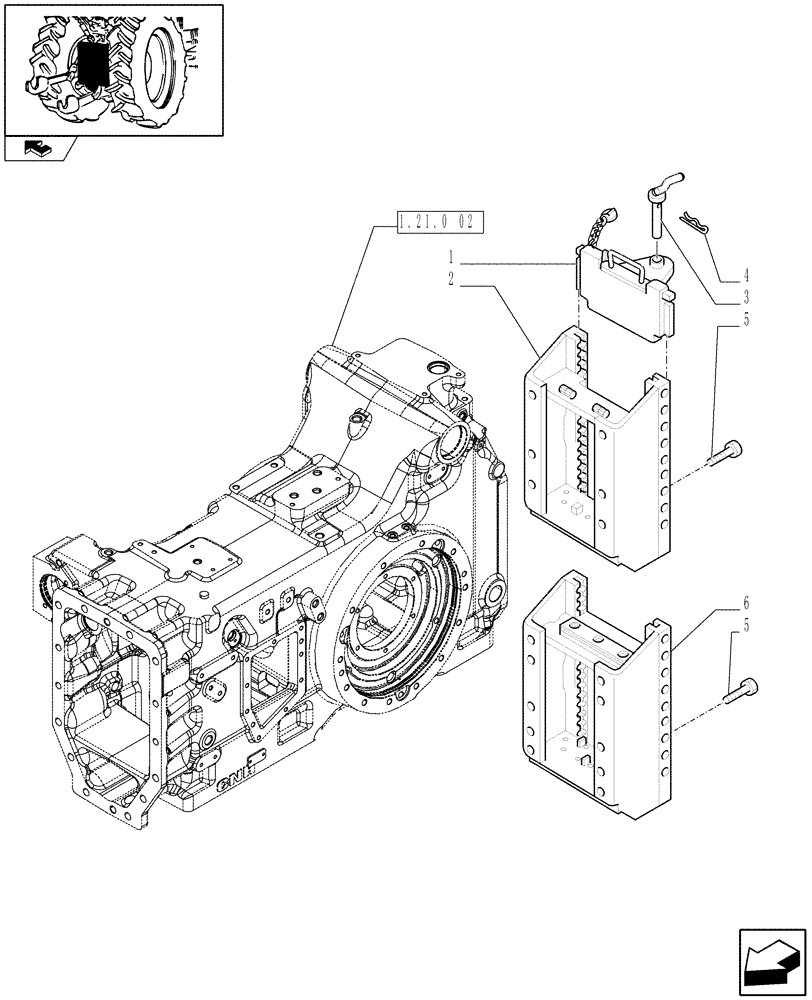

Схема запчастей Case IH PUMA 140 - (1.89.5/03) - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY) (VAR.330942) (09) - IMPLEMENT LIFT
1
6
2
4
home
1.21.0 02
5
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199458

TOW HOOK

1шт.

2

87734325

FRAME

, Serial Range: -C6978

1шт.

3

82016898

HITCH PIN

1шт.

4

82000094

SPRING,40mm OD x 142mm L

1шт.

5

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

10шт.

6

84351258

FRAME

, Start Serial: D6978

1шт.
