(1.93.3/01A[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN

Запчасти Case IH PUMA 140 (1.93.3/01A[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

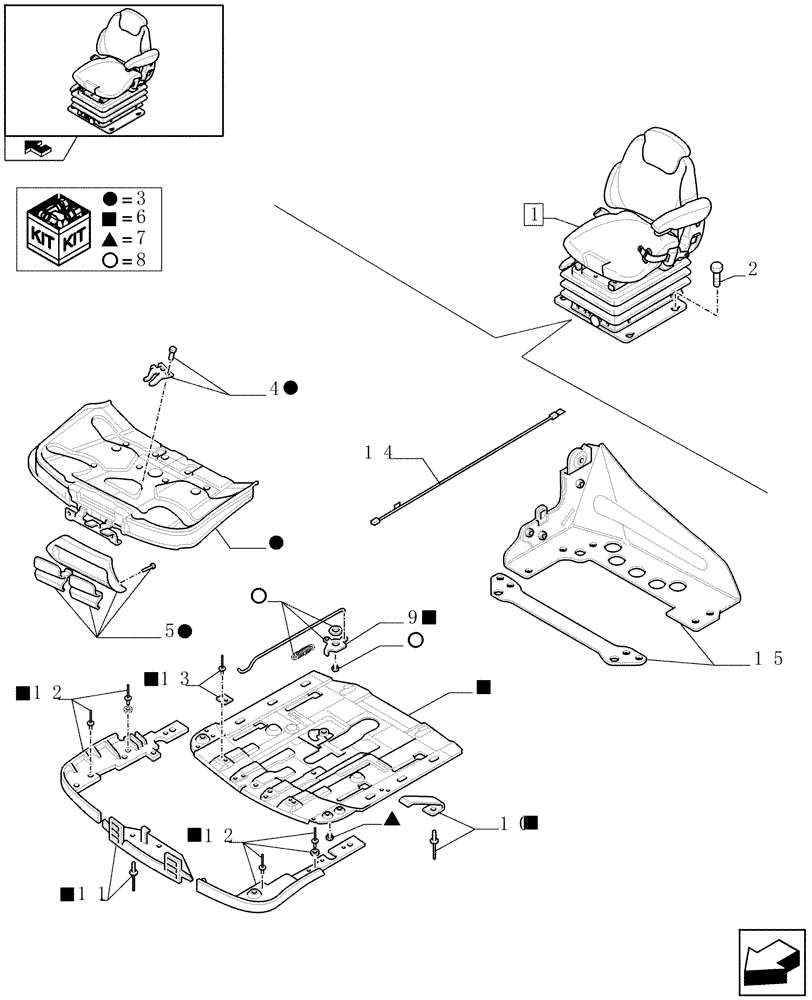

Схема запчастей Case IH PUMA 140 - (1.93.3/01A[03]) - DELUXE SEAT WITH LOW FREQUENCY AIR SUSPENSION, HEATED CUSHIONS, BELT AND SWITCH - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
8
6
11
3
3
6
12
6
6
6
1
9
13
4
2
3
14
6
7
3
5
home
8
10
6
8
3
7
8
6
7
15
12
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486990

SEAT

ASSY

1шт.

Includes Operator Presence Switch

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

84191153

ADJUSTER

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

Incl. 7

1шт.

7

84191202

SET OF PARTS

1шт.

8

84191203

CONTROL LEVER

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

84191178

SET OF PARTS

1шт.

14

84191190

WIRE HARNESS

1шт.

15

84191195

SUPPORT

1шт.
