(31.146.01) - VAR - 743700, 333648, 334648, 335648 - FRONT PTO ASSY - PTO, CLUTCH & CYLINDER

Запчасти Case IH PUMA 145 (31.146.01) - VAR - 743700, 333648, 334648, 335648 - FRONT PTO ASSY - PTO, CLUTCH & CYLINDER (31) - IMPLEMENT POWER TAKE OFF

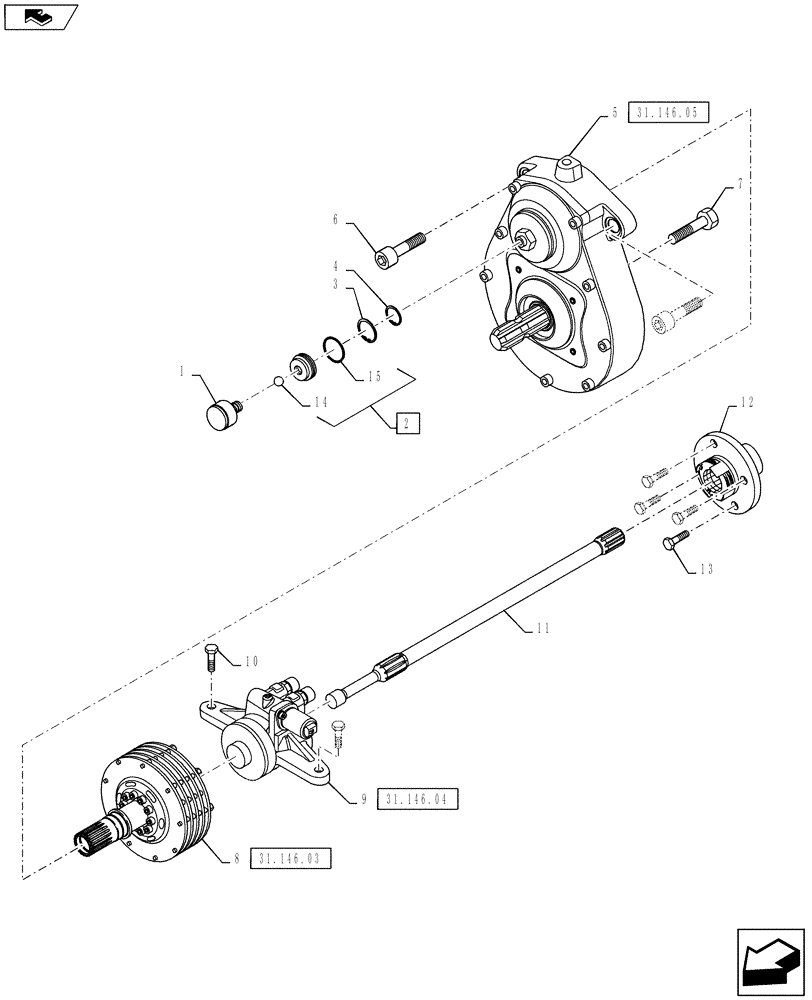

Схема запчастей Case IH PUMA 145 - (31.146.01) - VAR - 743700, 333648, 334648, 335648 - FRONT PTO ASSY - PTO, CLUTCH & CYLINDER (31) - IMPLEMENT POWER TAKE OFF
home
4
11
9
2
13
1
6
31.146.04
5
31.146.05
10
15
12
31.146.03
7
3
14
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47126759

BREATHER,M12 x 1.25

1шт.

2

47128748

PLUG

Incl 14, 15

1шт.

3

11069276

SNAP RING,M48, Ext

1шт.

4

11059576

SNAP RING,M36, Int

1шт.

5

84265034

GEARBOX

1шт.

6

87301672

HEX SOC SCREW,M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

7

15541121

SCREW,Hex, M12 x 1.25 x 65mm, Cl 8.8

1шт.

8

87731123

PTO CLUTCH

1шт.

9

47057804

CYLINDER

1шт.

10

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

11

87731116

DRIVE SHAFT,694mm L

1шт.

12

47127689

HUB

1шт.

13

15215724

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

4шт.

14

20419380

BALL,12.7mm Dia

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.
