(55.512.18) - VAR - 330683, 330687, 330688 - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT

Запчасти Case IH PUMA 145 (55.512.18) - VAR - 330683, 330687, 330688 - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

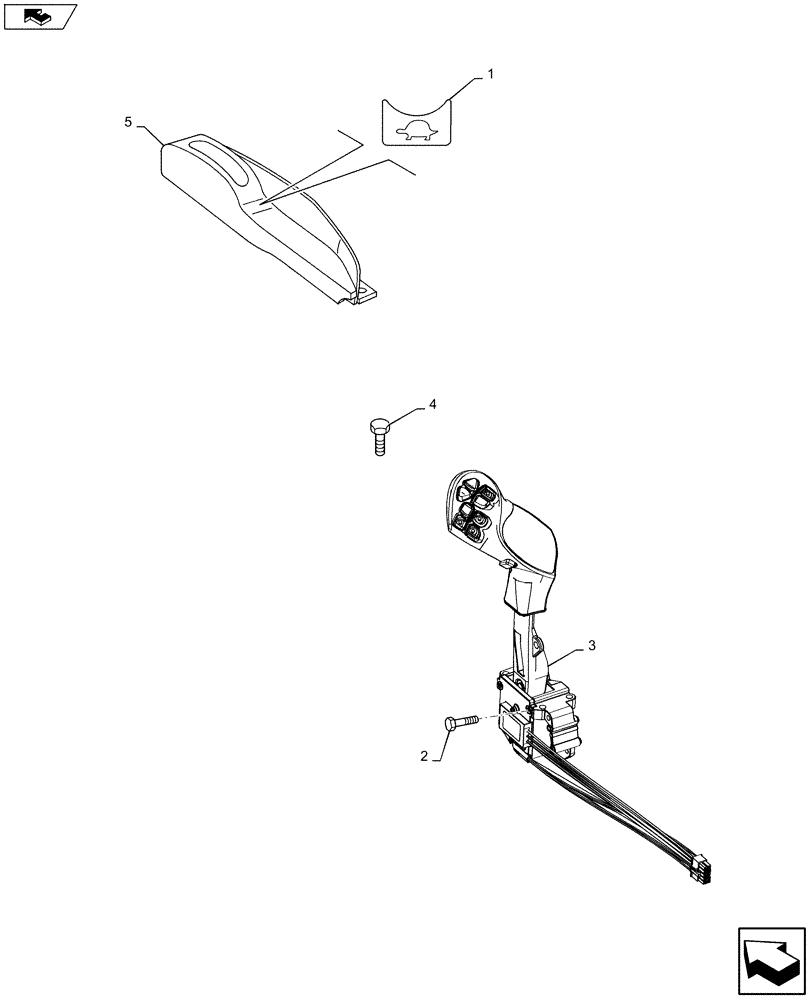

Схема запчастей Case IH PUMA 145 - (55.512.18) - VAR - 330683, 330687, 330688 - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS
home
4
3
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84145169

DECAL

1шт.

2

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

3

84596604

JOYSTICK

1шт.

3

84596604R

REMAN-JOYSTICK

1шт.

3

84596604C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

5

84122981

BEZEL

1шт.
