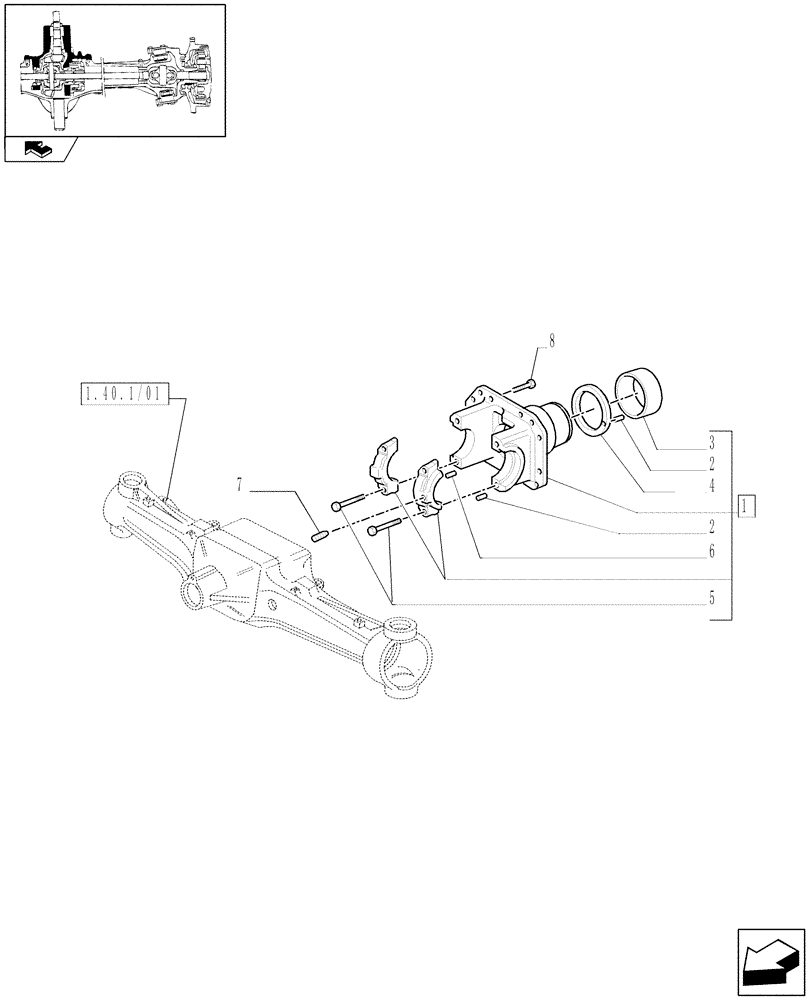

Запчасти Case IH PUMA 155 (1.40. 1/05) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - SUPPORT (04) - FRONT AXLE & STEERING

1

87329356

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

1шт.

3

5136116

BUSHING,105mm ID x 115.56mm OD x 72mm L

1шт.

4

5136115

RING,105.3mm ID x 148mm OD x 5mm Thk

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

4шт.

6

10333210

DOWEL,M4 x 10.00mm

2шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

8

16217734

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.
