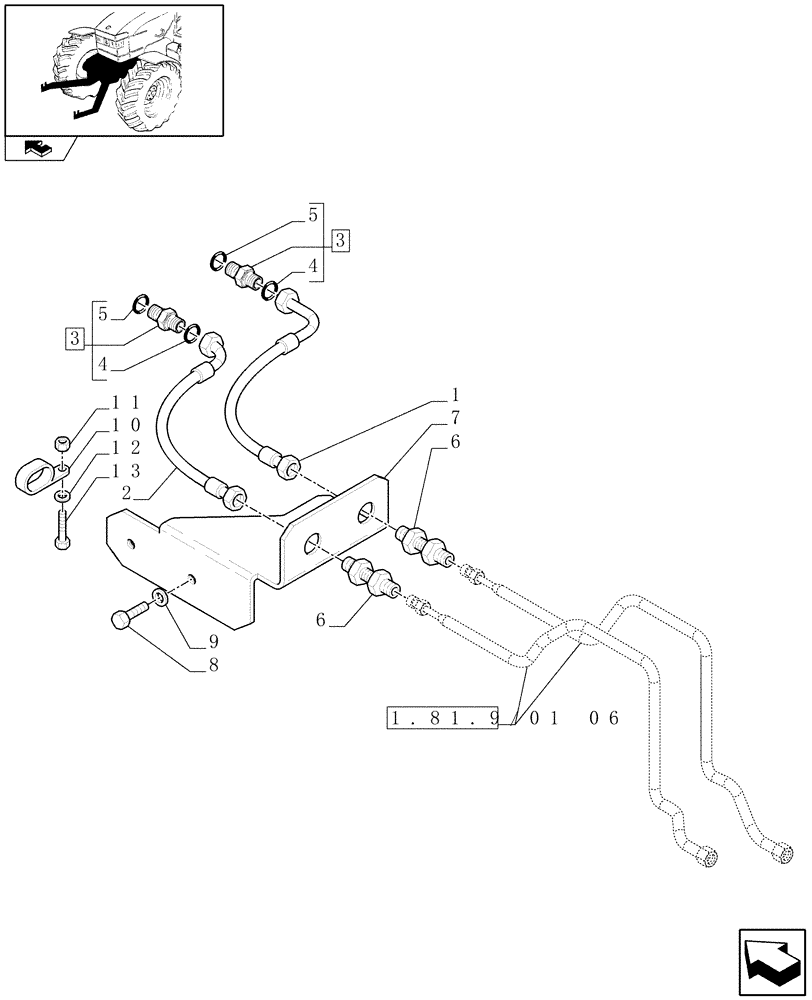

Запчасти Case IH PUMA 165 (1.81.9/02[06]) - (VAR.089) FRONT HPL WITH PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS - C6726 (07) - HYDRAULIC SYSTEM

1

87590684

FLEXIBLE HOSE

1шт.

2

87331296

FLEXIBLE HOSE

1шт.

3

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

Incl. 4-5

2шт.

4

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

82039603

HYD CONNECTOR

2шт.

7

87736294

SUPPORT

1шт.

8

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

82023568

CLAMP,2 Hoses

1шт.

11

15896211

NUT,M6, Cl 8

1шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

13

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

1шт.
