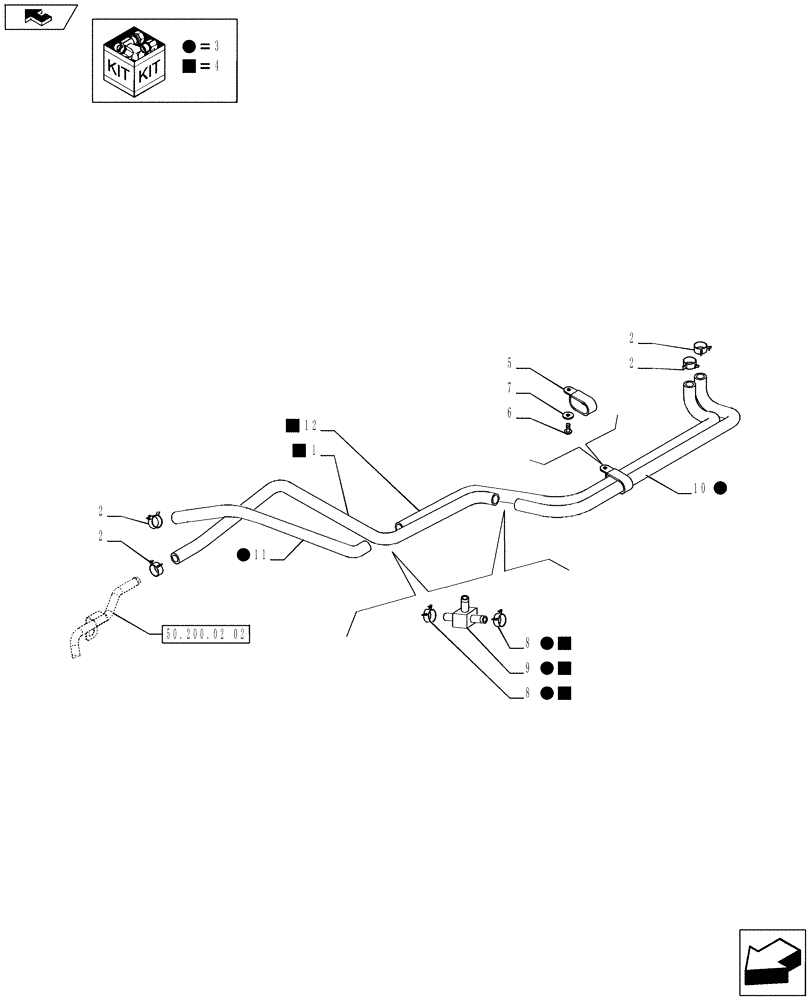

Запчасти Case IH PUMA 170 (50.200.02[04]) - AIR CONDITIONING SYSTEM PIPES (50) - CAB CLIMATE CONTROL

1

84347180

1шт.

2

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

3

84347188

HOSE ASSY.

Contains Ref. 10-11

1шт.

4

84347203

HOSE ASSY.

Contains Ref. 1-12

1шт.

5

82023568

CLAMP,2 Hoses

1шт.

6

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

1шт.

7

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

8

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

9

84180438

ADAPTER

2шт.

10

84347187

HOSE ASSY.,15.25mm ID x 1050mm L

1шт.

11

84347186

HOSE ASSY.

1шт.

12

84347185

1шт.
