(55.404.0601) - CAB ROOF, TURN SIGNAL LIGHT, W/ HIGH VISIBILITY PANEL - NA (VAR.729097-743229-743628)

Запчасти Case IH PUMA 185 (55.404.0601) - CAB ROOF, TURN SIGNAL LIGHT, W/ HIGH VISIBILITY PANEL - NA (VAR.729097-743229-743628) (55) - ELECTRICAL SYSTEMS

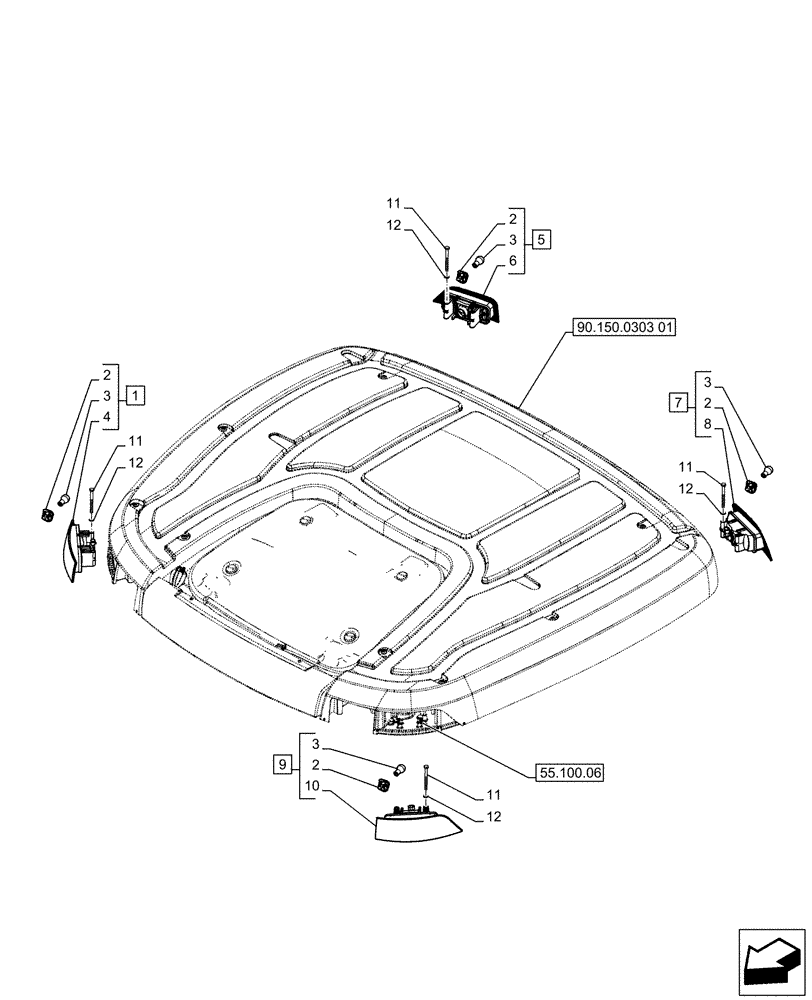

Схема запчастей Case IH PUMA 185 - (55.404.0601) - CAB ROOF, TURN SIGNAL LIGHT, W/ HIGH VISIBILITY PANEL - NA (VAR.729097-743229-743628) (55) - ELECTRICAL SYSTEMS
55.100.06
2
3
2
11
3
10
8
11
11
2
6
11
9
4
12
7
1
12
3
12
3
12
5
2
90.150.0303 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

RH, Front, ASSY, Incl 2 - 4

1шт.

2

87304554

HOLDER

4шт.

3

14148190

BULB,P21W, 12V, 21W

4шт.

4

NSS

NOT SOLD SEPARAT

Lamp, RH, Front, Incl in 1

1шт.

5

87301969

FLASHER LAMP

RH, Rear, ASSY, Incl 2, 3, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Lamp, RH, Rear, Incl in 5

1шт.

7

87301968

FLASHER LAMP

LH, Rear, ASSY, Incl 2, 3, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Lamp, LH, Rear, Incl in 7

1шт.

9

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

LH, Front, ASSY, Incl 2, 3, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Lamp, LH, Front, Incl in 9

1шт.

11

10903921

BOLT,Hex, M6 x 65mm, Cl 8.8

8шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

8шт.
