(1.80.1/03[03]) - (VAR.335) PTO 540E/1000 RPM WITH INTERCHANGEABLE SHAFTS - COVER AND GEARS

Запчасти Case IH PUMA 195 (1.80.1/03[03]) - (VAR.335) PTO 540E/1000 RPM WITH INTERCHANGEABLE SHAFTS - COVER AND GEARS (07) - HYDRAULIC SYSTEM

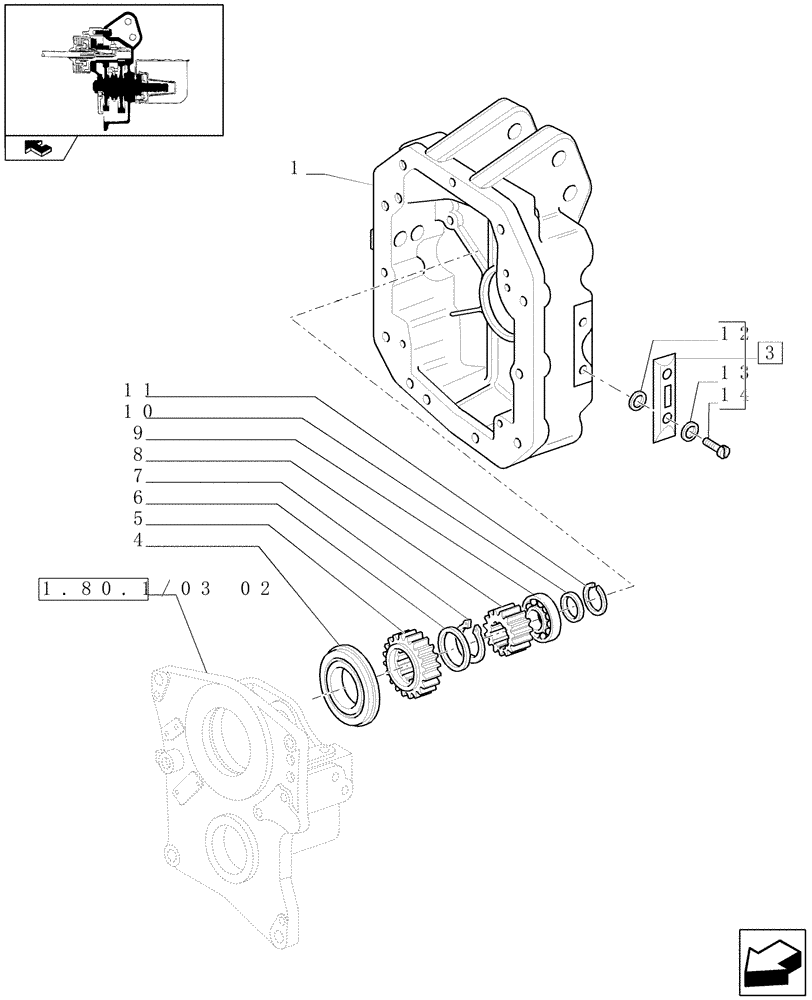

Схема запчастей Case IH PUMA 195 - (1.80.1/03[03]) - (VAR.335) PTO 540E/1000 RPM WITH INTERCHANGEABLE SHAFTS - COVER AND GEARS (07) - HYDRAULIC SYSTEM
4
13
14
5
1.80.1/03 02
1
home
6
3
12
10
8
9
11
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87576362

HOUSING

1шт.

2

44908048

BUSHING,16mm OD x 14mm L

2шт.

4

87543968

BALL BEARING,75mm ID x 130mm OD x 25mm W

1шт.

3

87356021

LEVEL GAUGE

1шт.

5

87548135

DRIVING GEAR

75 x 130 x 25

1шт.

6

5151457

THRUST WASHER,50.1mm ID x 62mm OD x 2mm Thk

1шт.

7

5138419

SNAP RING,M50

D=50

1шт.

8

87576360

GEAR

1шт.

9

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.

10

5154307

SNAP RING,M35

D=35

1шт.

11

5154308

THRUST WASHER,35.1mm ID x 43mm OD x 2mm Thk

35.1 x 43 x 2

1шт.

12

87349969

RUBBER SEAL

2шт.

13

47130060

O-RING

2шт.

14

47130059

SCREW,Pan HD, M12 x 41mm

2шт.
