(1.82.7/02A) - 4 X MECHANICAL CLOSED CENTER REMOTES

Запчасти Case IH PUMA 195 (1.82.7/02A) - 4 X MECHANICAL CLOSED CENTER REMOTES (07) - HYDRAULIC SYSTEM

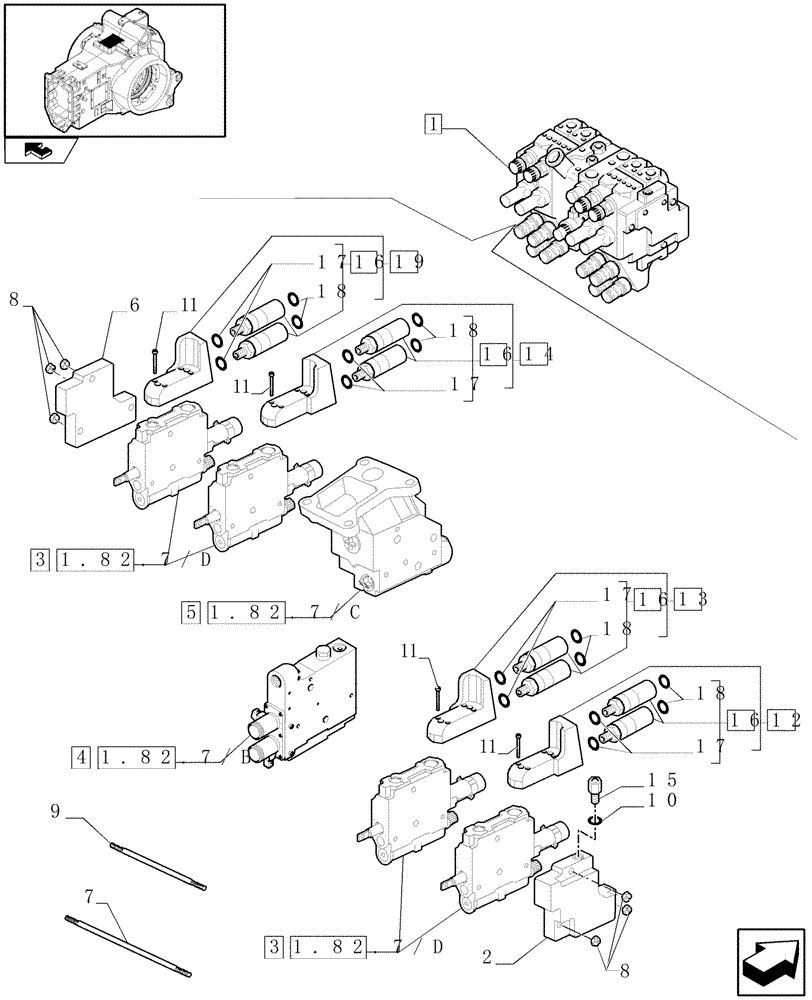

Схема запчастей Case IH PUMA 195 - (1.82.7/02A) - 4 X MECHANICAL CLOSED CENTER REMOTES (07) - HYDRAULIC SYSTEM
9
18
19
1
1
1
7
13
10
1
1
8
4
8
18
16
1.82.7/d
home
1.82.7/b
1.82.7/c
1.82.7/d
15
18
17
1
17
17
3
5
1
3
1
12
2
14
6
18
16
17
1
16
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87311373

CONTROL VALVE

REMOTE CONTROL VALVE

1шт.

2

5195157

COVER

1шт.

3

87313431

VALVE SECTION

4шт.

87313431R

REMAN-HYD VALVE

PUMA 165, PUMA 180, PUMA 195, PUMA 210 ALL SERIAL NUMBER Z*BE 40001 --> 50000 AND 60001 --> … ALL (1/09-)

4шт.

87313431C

CORE-VALVE HYD

RETURN NUMBER

1шт.

4

47136333

CONTROL VALVE

1шт.

5

47136304

BODY

1шт.

6

5190710

PLATE

1шт.

7

5195168

TIE-ROD,M8

2шт.

8

5195169

NUT,M8

6шт.

9

5195170

BOLT

3шт.

10

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

11

14305971

HEX SOC SCREW,M6 x 45mm, Cl 12.9

16шт.

12

87381981

HYDRAULIC MANIFOLD

is faster 4bm10

1шт.

13

87381982

HYDRAULIC MANIFOLD

is faster 4bm11

1шт.

14

87381983

HYDRAULIC MANIFOLD

is faster 4bm12

1шт.

15

5191704

CHECK VALVE

1шт.

16

87381944

COUPLING, QUICK, FEM

8шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

18

87382012

SEAL KIT

8шт.

19

87381984

HYDRAULIC MANIFOLD

is faster 4bm13

1шт.
