(1.82.7/03) - (VAR. 681) 3 X MECHANICAL BOSCH REMOTES

Запчасти Case IH PUMA 195 (1.82.7/03) - (VAR. 681) 3 X MECHANICAL BOSCH REMOTES (07) - HYDRAULIC SYSTEM

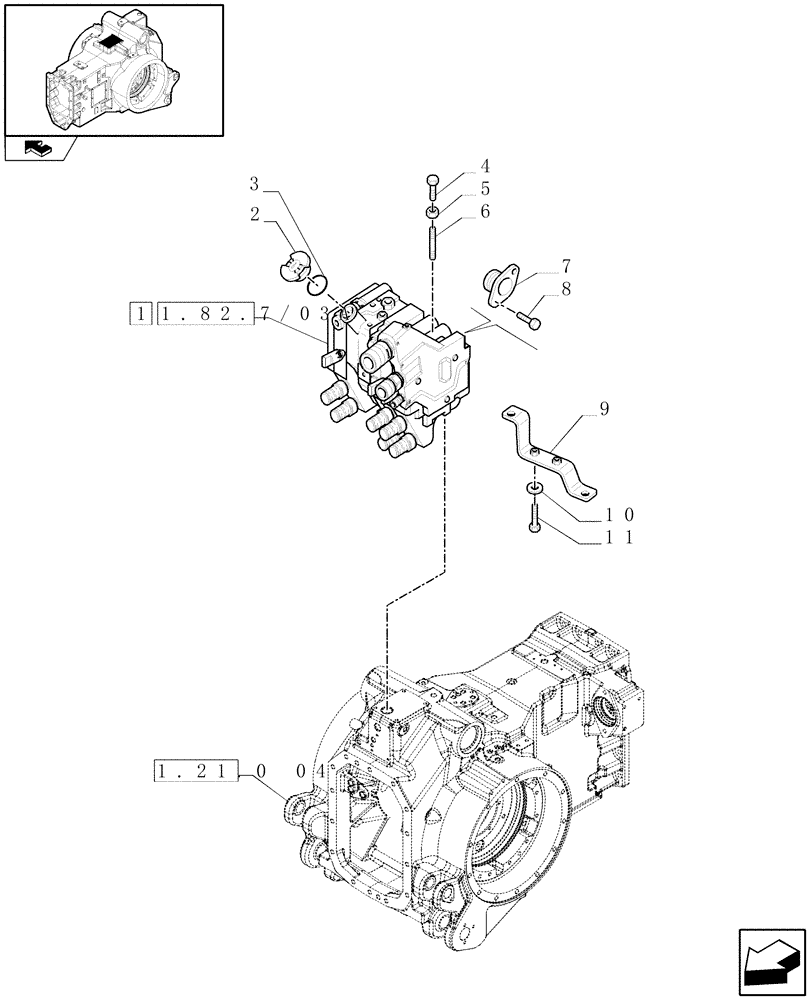

Схема запчастей Case IH PUMA 195 - (1.82.7/03) - (VAR. 681) 3 X MECHANICAL BOSCH REMOTES (07) - HYDRAULIC SYSTEM
2
home
1.82.7/03a
1.21.0 04
4
11
5
10
3
7
1
8
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87311371

CONTROL VALVE

REMOTE CONTROL VALVE

1шт.

2

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

3

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

4

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

12164711

NUT,M10 x 1.25, Cl 8

2шт.

6

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.

7

5189606

SUPPORT

1шт.

8

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

6шт.

9

87386980

SUPPORT

1шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
