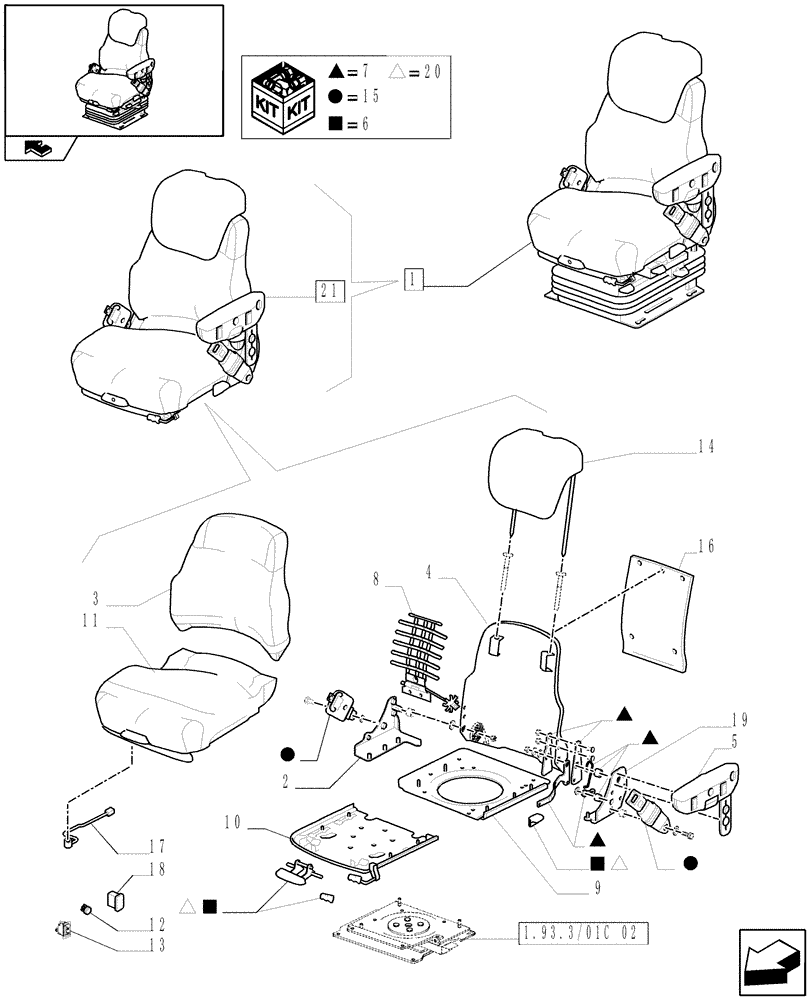

Запчасти Case IH PUMA 195 (1.93.3/01C[01]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

1

87486992

SEAT

1шт.

For Electrohydraulic Remotes Models only

1шт.

1

84171036

DRIVER SEAT

1шт.

For Mechanical Remotes Models only

1шт.

2

84155803

HOLDER

RH

1шт.

3

84155810

SEAT BACK

1шт.

4

87529838

SEAT BACK

Back Pan

1шт.

5

87529843

ARMREST

LH

1шт.

6

87308611

SERVICE KIT

1шт.

7

82020808

KIT

Recliner

1шт.

8

87367816

KIT

Lumbar

1шт.

9

87529831

SEAT BACK

Seat Pan

1шт.

10

87529825

KIT

Cushion Extension

1шт.

11

84155807

SEAT CUSHION

1шт.

12

87308609

PREHEATING SWITCH

Heater

1шт.

13

87308605

SWITCH

Height Control

1шт.

14

84155811

SEAT HEADREST

Upper

1шт.

Include two plastic tubes

1шт.

15

82020831

KIT

Seat Belt

1шт.

16

82030777

BRIEF CASE

1шт.

17

87529796

SWITCH

Operator Presence Switch

1шт.

18

87529797

SWITCH

Ride Firmness

1шт.

19

47127917

SERVICE KIT

LH

1шт.

20

82020839

KIT

Knobs

1шт.

21

84169231

ASSY

1шт.
