(1.93.3/01D[02]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN

Запчасти Case IH PUMA 195 (1.93.3/01D[02]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB

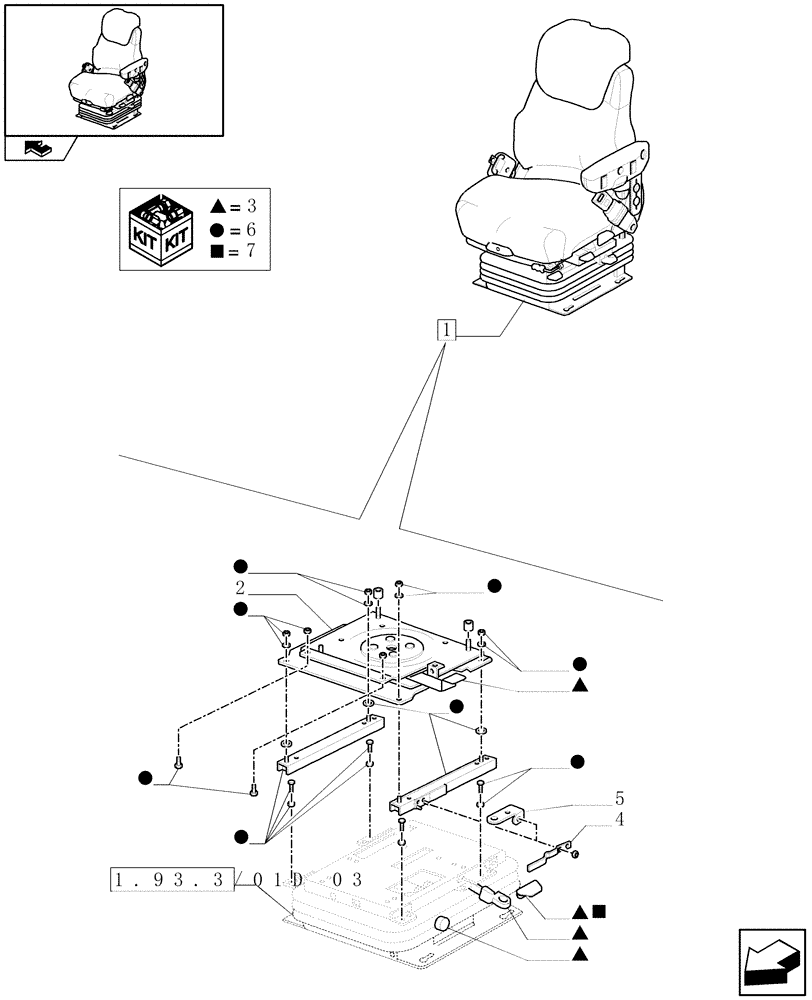

Схема запчастей Case IH PUMA 195 - (1.93.3/01D[02]) - DELUXE SEAT WITH REELING SEAT BELT, HEATED CUSHION AND SEMI ACTIVE SUSPENSION - BREAKDOWN (10) - OPERATORS PLATFORM/CAB
6
1
3
home
1.93.3/01d 03
6
6
2
3
6
6
3
3
6
3
6
6
6
6
7
4
3
7
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87706661

SEAT

1шт.

For Electrohydraulic Remotes Models only

1шт.

1

84171029

DRIVER SEAT

1шт.

For Mechanical Remotes Models only

1шт.

2

84155804

PIVOT PLATE

Swivel

1шт.

For Electrohydraulic Remotes Models only

1шт.

2

84155770

PIVOT PLATE

Swivel

1шт.

For Mechanical Remotes Models only

1шт.

3

82020839

KIT

Knobs

1шт.

4

82020809

SERVICE KIT

Slide Lever

1шт.

5

82020923

BRACKET

Lever Support

1шт.

6

82020814

SERVICE KIT

Slide

1шт.

7

82020839

KIT

Knobs

1шт.
