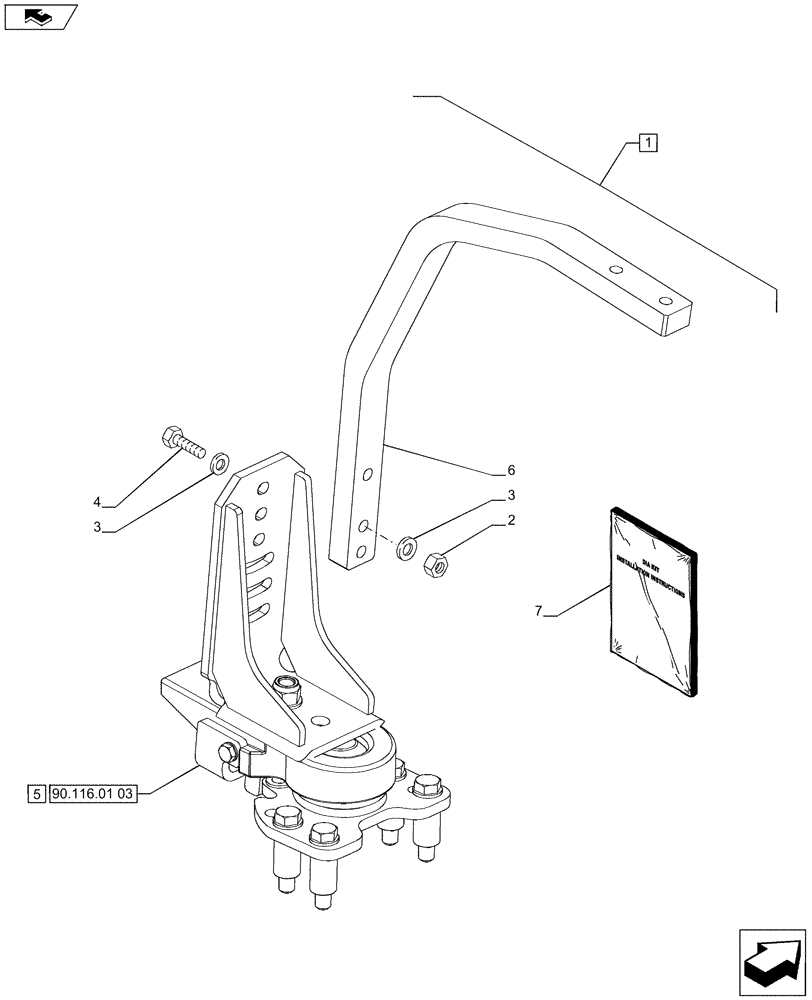

Запчасти Case IH PUMA 200 (88.090.08[01]) - DIA KIT - FRONT FENDERS (88) - ACCESSORIES

1

718776034

DIA KIT, TRACTOR

Front Fenders 620 mm Wide, Contains Ref. 2-6 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

12164911

NUT,M12 x 1.75, Cl 8

4шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

4

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

4шт.

5

84179112

HUB

RH, ASSY

1шт.

5

84179113

HUB

LH, ASSY

1шт.

6

87744046

SUPPORT

2шт.

7

84143209

INSTRUCTION

1шт.
