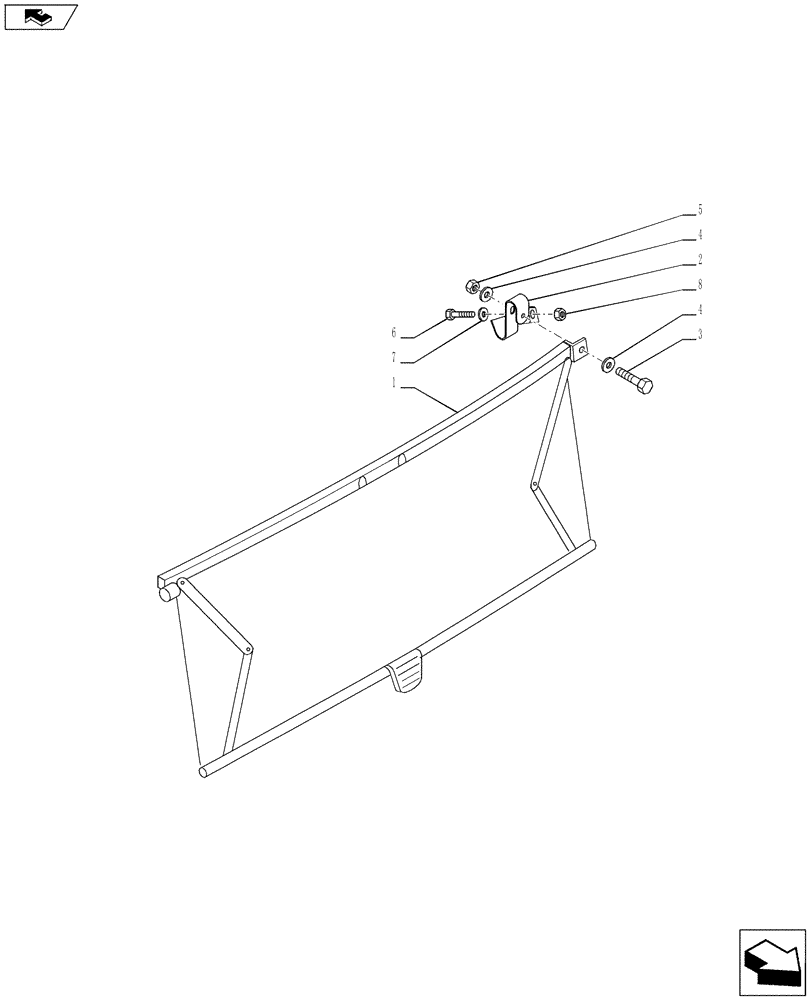

Запчасти Case IH PUMA 200 (90.156.04) - REAR SUNSHADE - REAR SUN CURTAIN (VAR.743449) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82034578

CURTAIN,366.4mm x 1059mm

1шт.

2

82038537

BRACKET

LH

1шт.

2

82038539

BRACKET

RH

1шт.

3

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

5

15896211

NUT,M6, Cl 8

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
