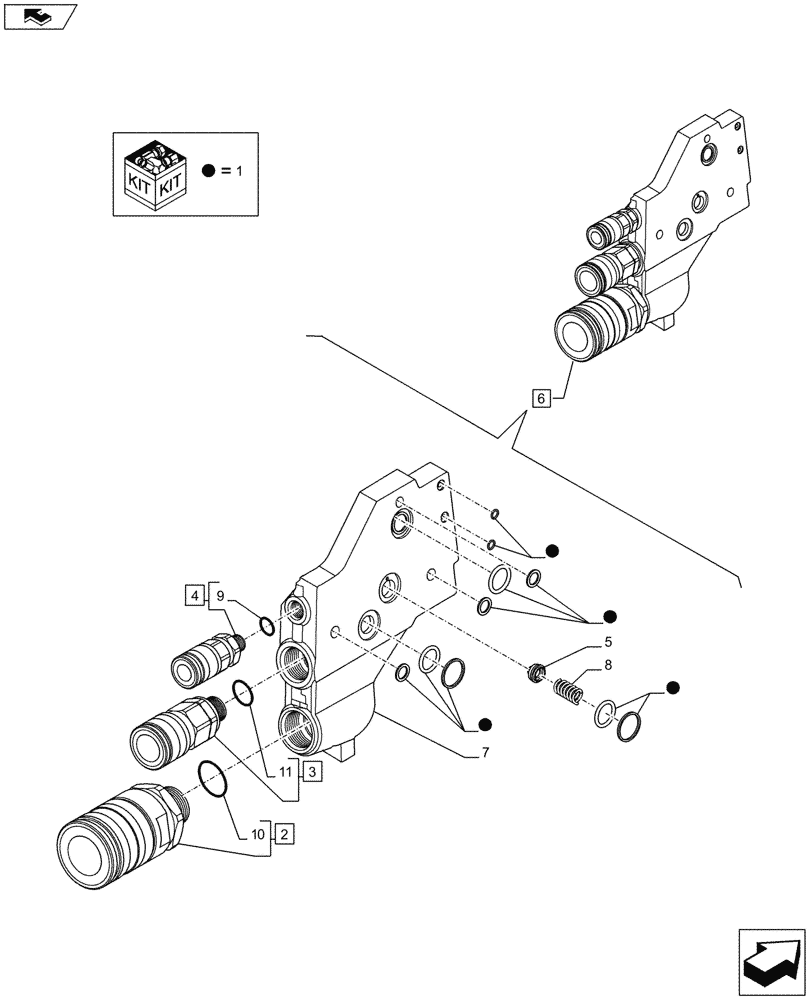

Запчасти Case IH PUMA 200 (35.204.0107[03]) - VALVE, W/ POWER BEYOND COUPLERS, COMPONENTS (VAR.720681) (35) - HYDRAULIC SYSTEMS

1

47126955

SEAL KIT

1шт.

2

87310811

PUSH-PULL COUPLING

ASSY, Incl 10

1шт.

3

87310813

PUSH-PULL COUPLING

ASSY, Incl 11

1шт.

4

87310816

PUSH-PULL COUPLING

ASSY, Incl 9

1шт.

5

5191716

VALVE

Bushing

1шт.

6

47135544

HYD VALVE SECTION

ASSY, Power Beyond Slice, Incl 1 - 5, 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

47129466

SPRING

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

10

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

11

14438185

O-RING,24mm ID x 3mm

1шт.
