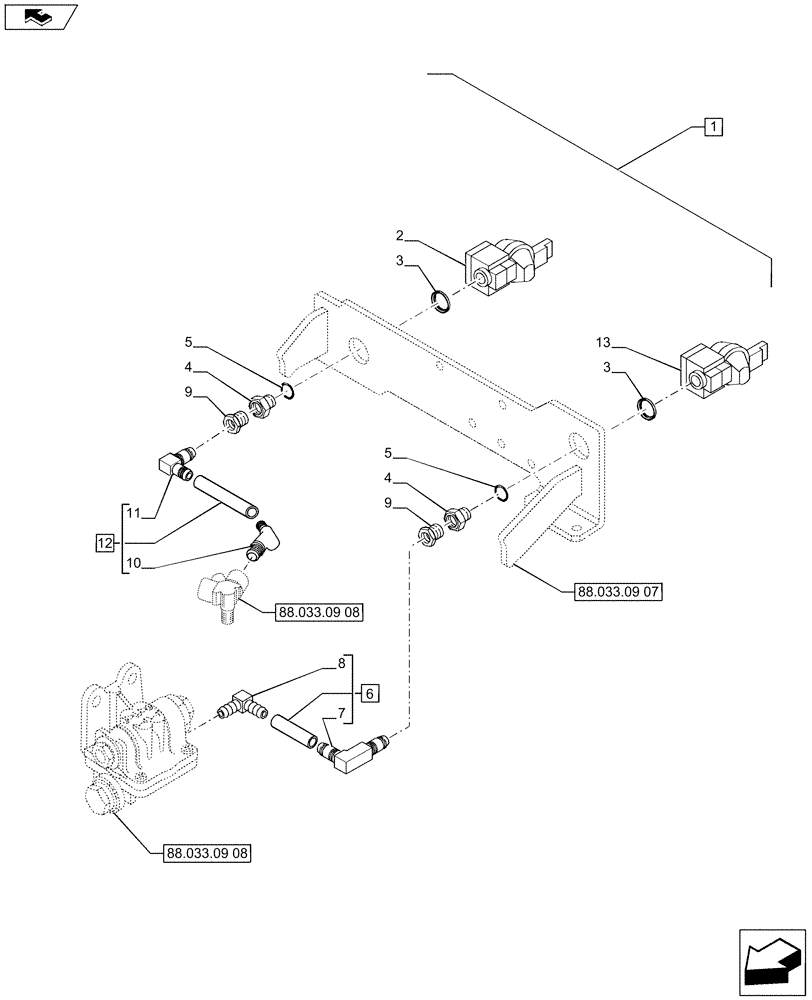

Запчасти Case IH PUMA 200 (88.033.09[06]) - DIA KIT - PNEUMATIC TRAILER BRAKE (UNIVERSAL) - QUICK HITCH AND PIPES (88) - ACCESSORIES

1

719385204

DIA KIT, TRACTOR

Pneumatic Trailer Brake (Universal), Contains Ref. 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82001019

COUPLING

Red

1шт.

3

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

M16

2шт.

4

87678128

ADAPTER

M16

2шт.

5

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

6

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

Yellow, Contains Ref. 7,8

1шт.

7

84157694

90 ELBOW

1шт.

8

87588080

90 ELBOW,NG8 x 12mm D

1шт.

9

82034157

ADAPTER

2шт.

10

87642190

HYD CONNECTOR

1шт.

11

82038479

90 ELBOW,NG12 x 12mm D

1шт.

12

84181248

FLEXIBLE HOSE

Contains Ref. 10,11

1шт.

13

82001020

COUPLING

Yellow

1шт.
