(88.035.07[06]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS

Запчасти Case IH PUMA 200 (88.035.07[06]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES

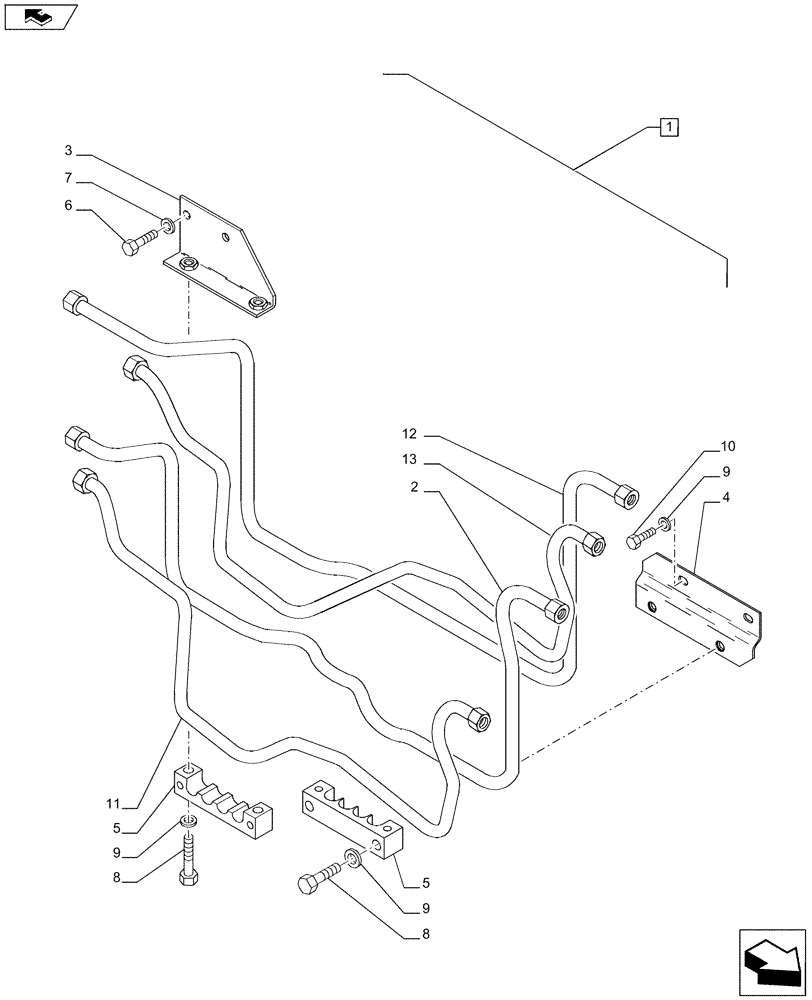

Схема запчастей Case IH PUMA 200 - (88.035.07[06]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - PIPES AND BRACKETS (88) - ACCESSORIES
9
home
9
4
12
1
5
9
6
13
10
7
8
5
3
8
2
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710062064

Front Linkage for Suspended and STD Axles, less PTO, less Aux. Coupler, Contains Ref. 2-13

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87517999

PIPE

1шт.

3

87346861

BRACKET

1шт.

4

87346863

BRACKET

1шт.

5

87579043

CLAMP,4 Hoses

2шт.

6

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

4шт.

9

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

10

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

11

84279484

HYD TUBE

1шт.

Cylinder Lower

1шт.

12

87517998

PIPE

1шт.

13

84279485

HYD TUBE

2шт.

Cylinder Raise

1шт.
