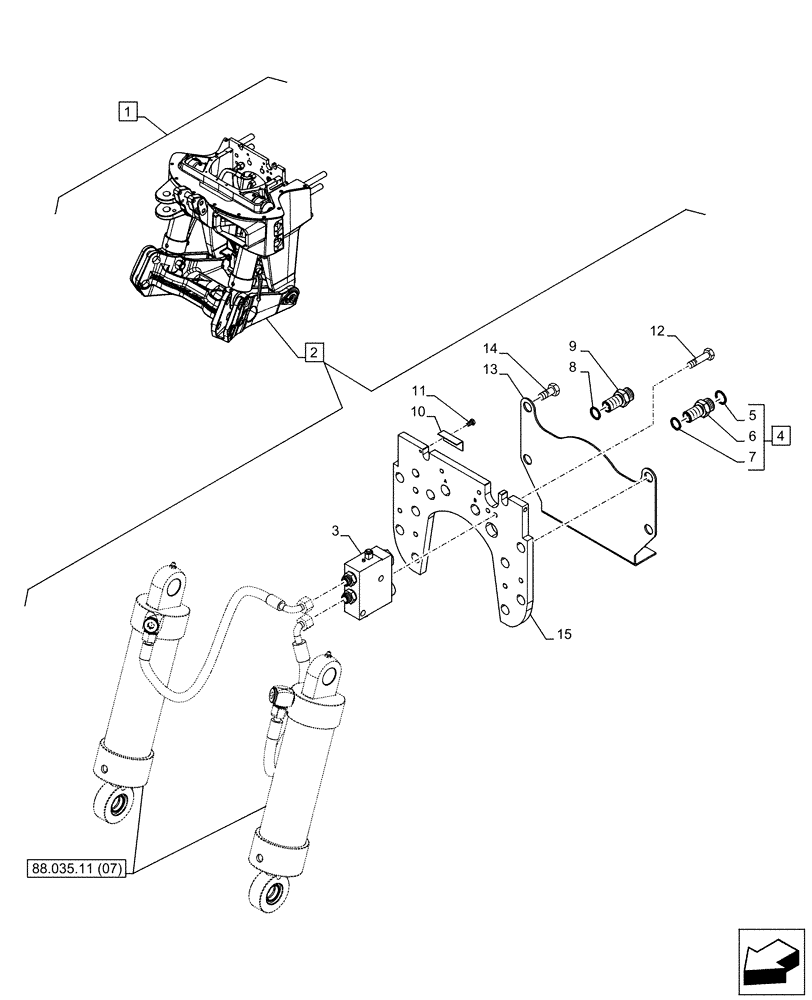

Запчасти Case IH PUMA 200 (88.035.11[02]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - LIFTER, HOUSING & COVER (88) - ACCESSORIES

1

718062014

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-15

1шт.

Refer to Installation Instructions for Correct Assemby Procedure

1шт.

2

84406892

HITCH

To see full DIA KIT composition look for all the figures where the DIA KIT P/N is shown, ASSY, Incl 3-15

1шт.

3

84481192

PILOT VALVE

1шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 5-7

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

84481139

FITTING

1шт.

10

84475685

PROTECTOR

1шт.

11

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

12

12112

O-RING,11.3mm ID x 2.4mm Width

2шт.

13

84469757

PLATE

1шт.

14

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

15

84470397

MOUNTING PLATE

1шт.
