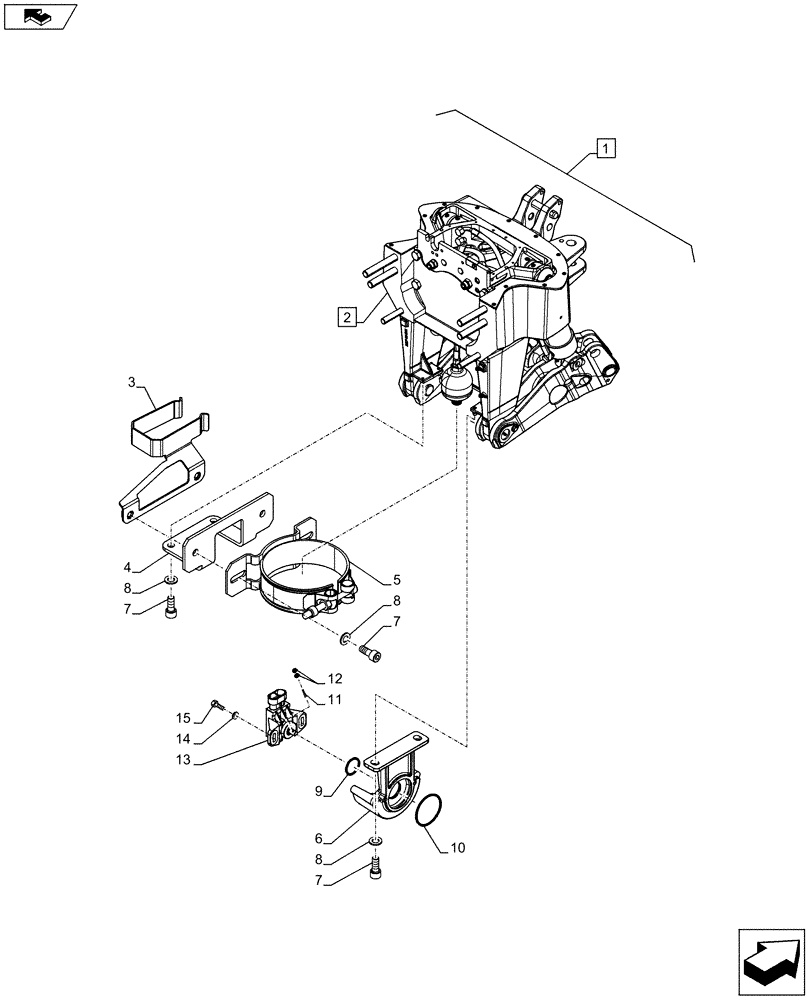

Запчасти Case IH PUMA 200 (88.035.11[04]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - BRACKET (88) - ACCESSORIES

1

718062024

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-15

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84406892

HITCH

ASSY, Incl 3-15

1шт.

3

84398968

HOLDER

1шт.

4

84481270

BRACKET

1шт.

5

84481296

FASTENER

1шт.

6

84479284

SUPPORT

1шт.

7

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

6шт.

8

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

9

84482290

O-RING

1шт.

10

84482233

O-RING

1шт.

11

84485824

ROLL PIN

1шт.

12

84482300

O-RING,1.5 Thk x 2mm ID, Cl 5

2шт.

13

84479305

SENSOR

1шт.

14

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

15

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

2шт.
