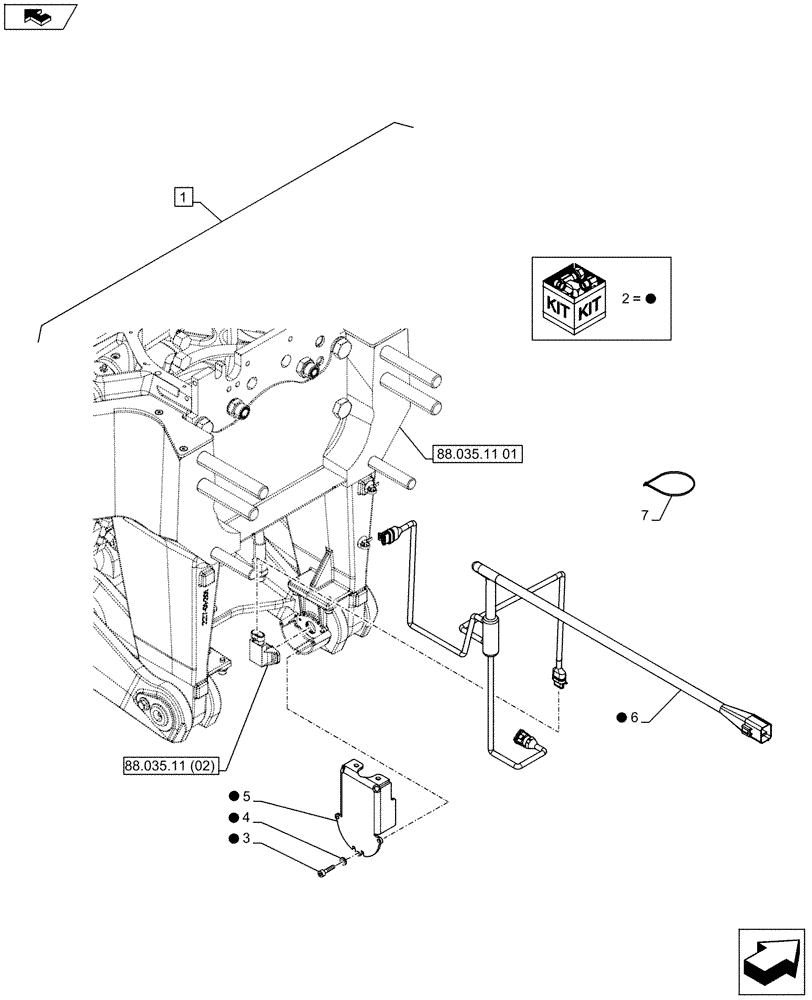

Запчасти Case IH PUMA 200 (88.035.11[06]) - DIA KIT - FRONT HPL FOR SUSPENDED AND STD AXLES, LESS PTO, LESS COUPLER - HARNESS AND BRACKET (88) - ACCESSORIES

1

718062024

DIA KIT, TRACTOR

Front HPL for Suspended and STD Axles, Less PTO, Less Couplers, Contains Ref. 2-7

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84408280

WIRE HARNESS

KIT

1шт.

3

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

3шт.

4

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

3шт.

5

84408286

COVER

1шт.

6

84378969

WIRE HARNESS

1шт.

7

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

11шт.
