(88.037.06) - DIA KIT - TOW HOOK CAT. D3

Запчасти Case IH PUMA 200 (88.037.06) - DIA KIT - TOW HOOK CAT. D3 (88) - ACCESSORIES

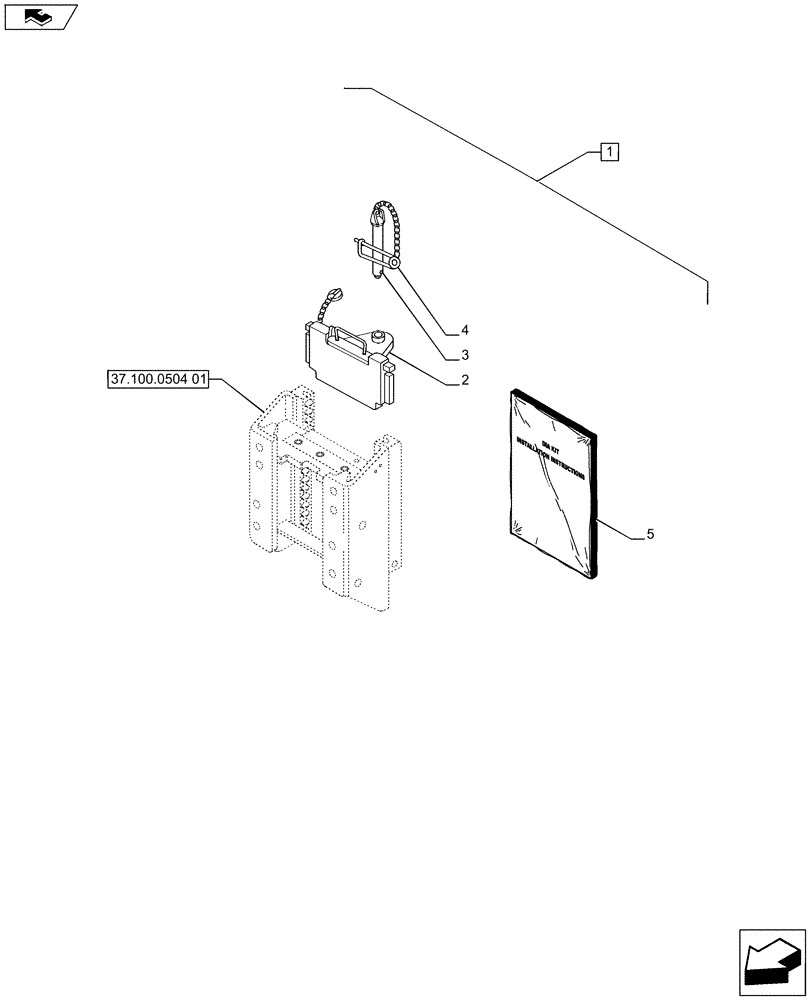

Схема запчастей Case IH PUMA 200 - (88.037.06) - DIA KIT - TOW HOOK CAT. D3 (88) - ACCESSORIES
2
37.100.0504 01
home
5
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710947024

DIA KIT, TRACTOR

Hook Cat. D3 for Slider Trailer Hitch, Contains Ref. 2-4 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82027419

TOW HOOK

1шт.

3

5152005

PIN

1шт.

4

5152004

HAIR PIN COTTER,195mm L

1шт.

5

84142248

INSTRUCTION

1шт.
