(88.035.07[03]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER - BREAKDOWN

Запчасти Case IH PUMA 215 (88.035.07[03]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER - BREAKDOWN (88) - ACCESSORIES

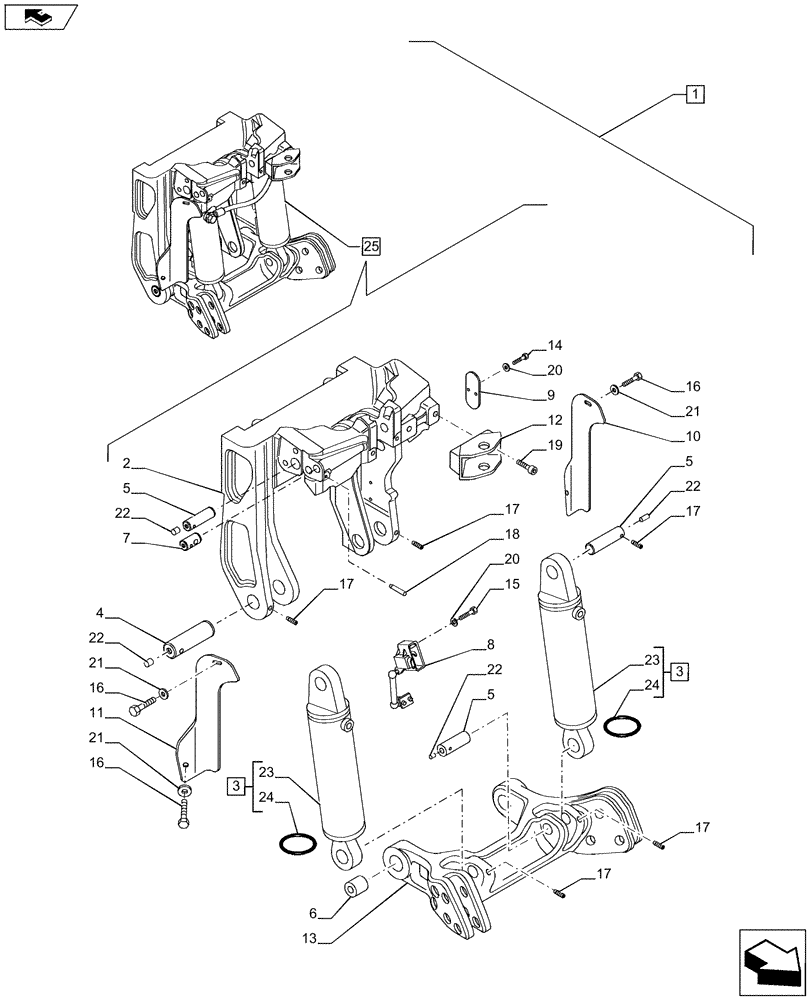

Схема запчастей Case IH PUMA 215 - (88.035.07[03]) - DIA KIT - FRONT HPL FOR ELECTRONIC/MECHANICAL REMOTES LESS PTO, LESS AUX. COUPLERS - LIFTER - BREAKDOWN (88) - ACCESSORIES
16
9
3
16
16
13
3
1
7
21
22
25
8
14
12
5
22
23
17
21
24
17
4
22
23
20
18
5
17
24
15
21
6
5
19
17
10
22
20
17
home
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710062064

Front Linkage for Suspended and STD Axles, less PTO, less Aux. Coupler, Contains Ref. 2-25

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87644500

FRAME

1шт.

3

87644502

LIFT CYLINDER

Contains Ref. 23,24

2шт.

4

87644504

PIN

2шт.

5

87644505

PIN

4шт.

6

87644506

BUSHING

2шт.

7

87644509

HITCH PIN

1шт.

8

87644555

POTENTIOMETER

1шт.

9

87644556

PLATE

1шт.

10

87644580

COVER

LH

1шт.

11

87644583

COVER

RH

1шт.

12

87644587

HITCH BRACKET

1шт.

13

87644501

FRAME

1шт.

14

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

15

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

16

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

17

86001294

SET SCREW,Hex Skt, M12 x 30mm, Dog Pt

5шт.

18

87684006

HEX SOC SCREW,M12 x 50mm, Cl 12.9

1шт.

19

14426221

HEX SOC SCREW,M16 x 40mm, Cl 8.8, Full Thd

2шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

22

87684987

PLUG

6шт.

23

87644502

LIFT CYLINDER

1шт.

24

87676895

SEAL KIT

1шт.

25

87476103

HITCH

ASSY, Contains Ref. 2-24

1шт.
