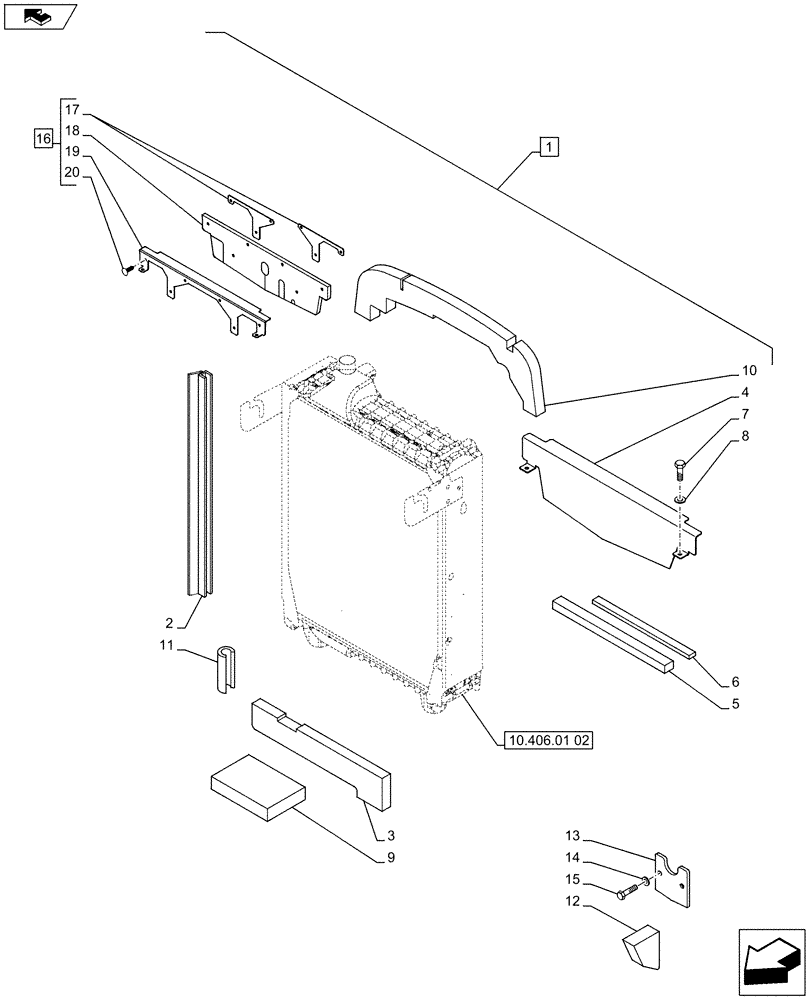

Запчасти Case IH PUMA 215 (88.035.09[04]) - DIA KIT - FRONT HPL FOR MID MOUNT REMOTES WITH PTO, WITH AUX. COUPLERS - RADIATOR DUCT AND SEALS (88) - ACCESSORIES

1

710066084

Front Linkage for Mid Mount Remotes with PTO, with Aux. Couplers, Contains Ref. 2 - 16

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

82039110

SEAL

2шт.

3

87380756

FOAM INSULATION

2шт.

4

87701774

DEFLECTOR

1шт.

5

82038425

SEALING STRIP,680mm x 25mm x 10mm

, Serial Range: -C7370

1шт.

6

82038264

SEAL,510mm x 15mm x 5mm

510MM, Rad to Baffle Plate

1шт.

7

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

8

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

82030145

FOAM INSULATION

Radiator Air Side

2шт.

10

82038279

SEAL

1шт.

11

82015330

BUMPER

2шт.

12

82039468

INSULATOR

, Serial Range: -C7370

1шт.

13

87390678

PLATE

, Serial Range: -C7370

1шт.

14

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Serial Range: -C7370

2шт.

15

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

2шт.

16

84543377

DEFLECTOR

ASSY, Incl 17 - 20, Start Serial: D7370

1шт.

17

87649703

DEFLECTOR

2шт.

18

84543379

FOAM

1шт.

19

84543378

BAFFLE

1шт.

20

87635853

STUD,7.1mm D

6шт.
