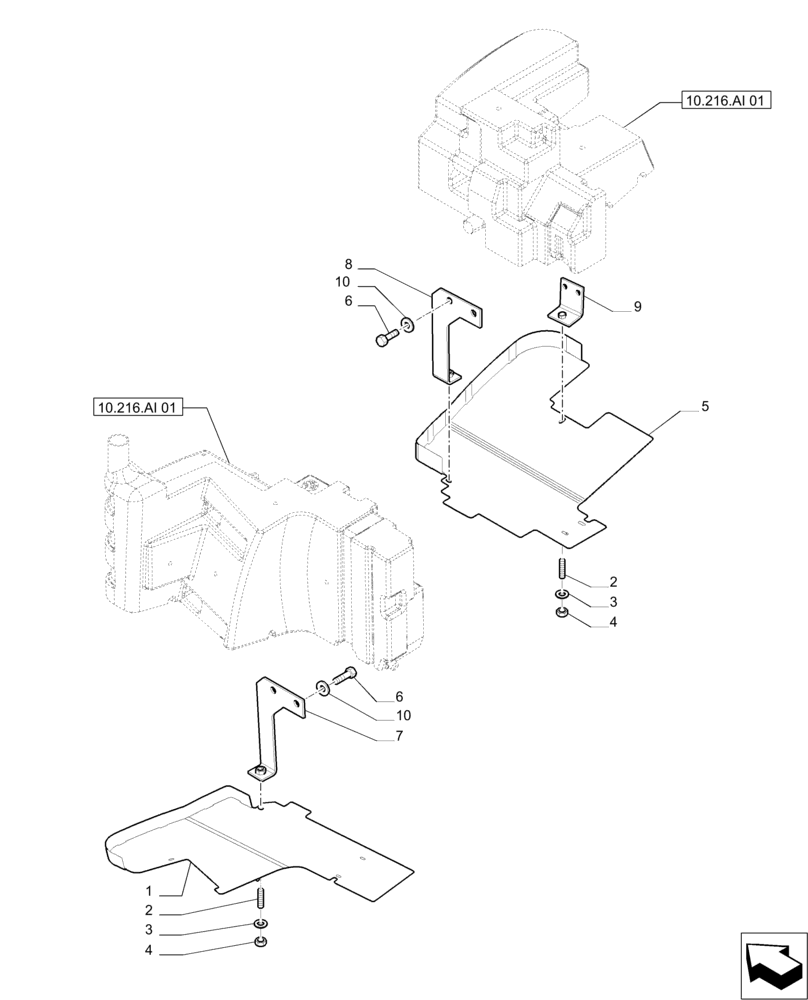

Запчасти Case IH PUMA 215 (10.216.AI[03]) - FUEL TANK GUARDS (10) - ENGINE

1

87570828

SHIELD

1шт.

2

82008683

STUD,M10 x 1.25 x 40mm L

8шт.

3

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

4

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

8шт.

5

87398322

SHIELD

1шт.

6

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

4шт.

7

87571013

SUPPORT

LH

1шт.

8

87571015

SUPPORT

RH

1шт.

9

87307464

BRACKET

1шт.

10

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.
