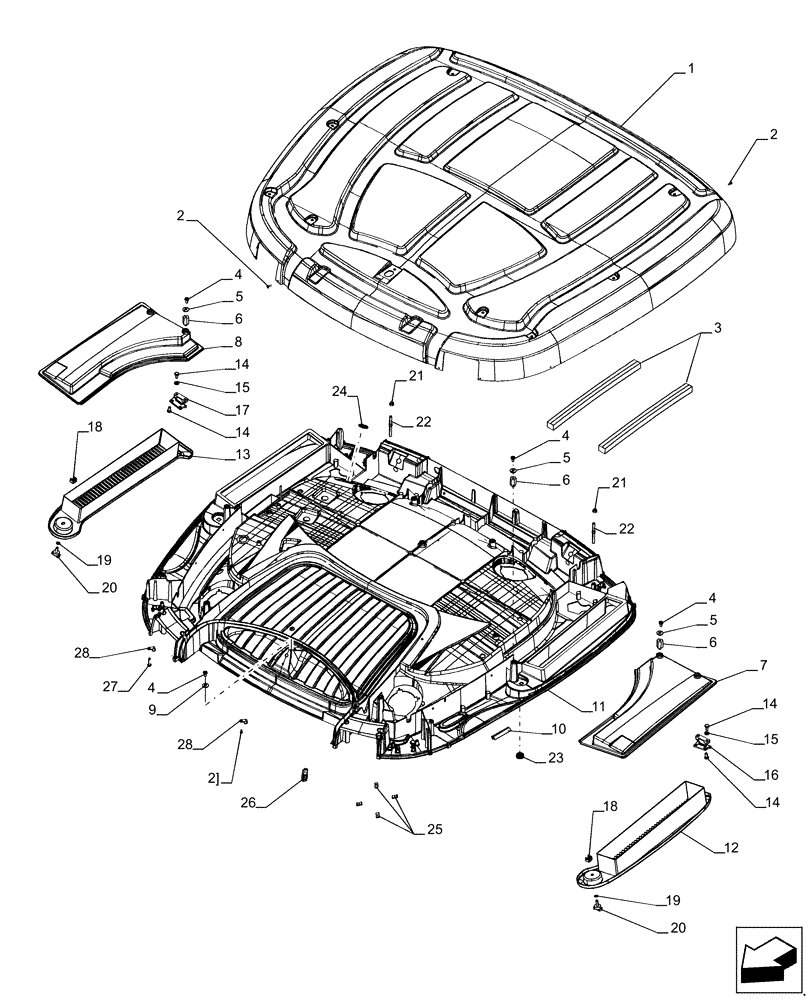

Запчасти Case IH PUMA 230 (90.150.BG[02]) - EEAA ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84316054

ROOF

1шт.

2

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

9шт.

3

82035600

GASKET

2шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

8шт.

6

82034114

SPACER,M6 x 25mm L

8шт.

7

87398509

FILTER COVER

1шт.

8

87355892

FILTER COVER

1шт.

9

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

10

82034370

SEAL

1шт.

11

47471811

ROOF

1шт.

12

82033661

SUPPORT

1шт.

13

87725999

SUPPORT

1шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

8шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

82033690

HINGE

1шт.

17

82033679

HINGE

1шт.

18

87541213

NUT,Cage, M8

2шт.

19

87524305

RETAINER,7.3mm ID x 12.5mm OD x 0.5mm Thk

2шт.

20

84516592

KNOB

2шт.

21

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

22

82034115

STUD

2шт.

23

82032318

PLUG

2шт.

24

87519328

BLANK-OFF PLUG,M32 x 9 x 3.1

1шт.

25

81872135

NUT,Retaining, M4.20

16шт.

26

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

1шт.

27

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

28

87343422

CLAMP

2шт.
