(90.118.BM[02]) - (VAR.053) 2 X FIXED EXTERNAL REAR VIEW MIRRORS

Запчасти Case IH PUMA 2304 (90.118.BM[02]) - (VAR.053) 2 X FIXED EXTERNAL REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

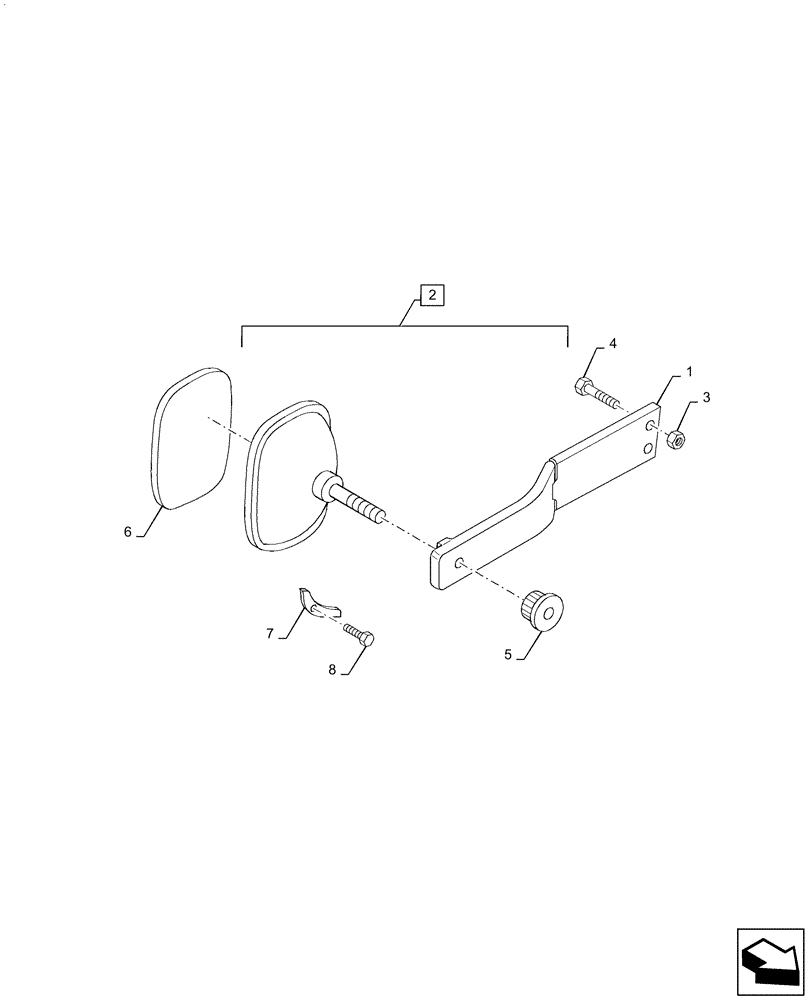

Схема запчастей Case IH PUMA 2304 - (90.118.BM[02]) - (VAR.053) 2 X FIXED EXTERNAL REAR VIEW MIRRORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
5
2
3
1
6
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

RH

1шт.

1

NSS

NOT SOLD SEPARAT

LH

1шт.

2

87339177

MIRROR ASSY.

Assy

2шт.

3

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

4

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

5

82016257

KNOB

2шт.

6

82035218

MIRROR,300mm x 200mm

2шт.

7

87531094

BRACKET

4шт.

8

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.
