(50.200.AA[02]) - AIR CONDITIONING, COMPRESSOR, COMPONENTS

Запчасти Case IH PUMA1654 (50.200.AA[02]) - AIR CONDITIONING, COMPRESSOR, COMPONENTS (50) - CAB CLIMATE CONTROL

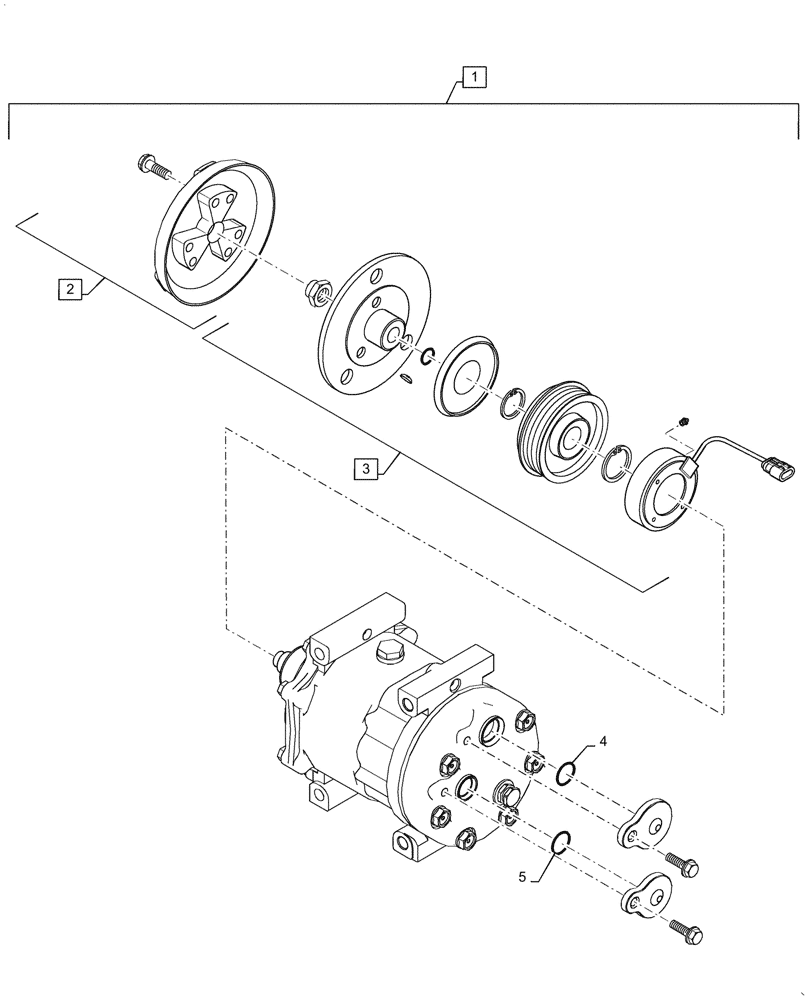

Схема запчастей Case IH PUMA1654 - (50.200.AA[02]) - AIR CONDITIONING, COMPRESSOR, COMPONENTS (50) - CAB CLIMATE CONTROL
2
4
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87709785

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley

Incl 2 - 5

1шт.

1

47808999R

REMAN-A/C COMPRESSOR

Reman Incl 2 - 5

1шт.

1

47808999C

CORE-A/C COMPRESSOR

Core Return Number

1шт.

2

84593797

COVER

1шт.

3

84593795

CLUTCH

1шт.

4

82036318

O-RING,25.29mm ID x 3.53mm Thk

Compressor Suction

1шт.

5

82036317

O-RING,21.82mm ID x 3.53mm Thk

Compressor Discharge

1шт.
