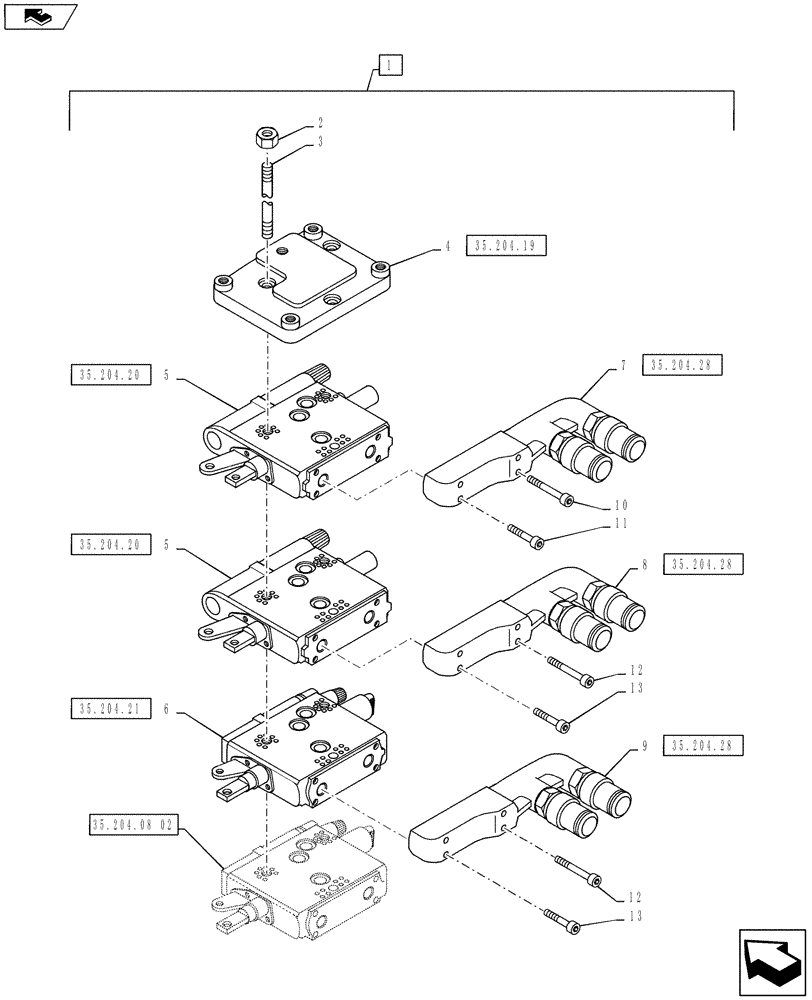

Запчасти Case IH PUMA 130 (35.204.08[01]) - VAR - 336845 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84146796

CONTROL VALVE

Incl 2 - 13 & 2 - 8, 10 & 11 on Fig 35.204.08 (02)

1шт.

2

5195169

NUT,M8

3шт.

3

84150182

THREADED TIE-ROD,291mm L

TRUSS ROD

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

5

87546169R

REMAN-HYD VALVE

2шт.

5

87546169C

CORE-VALVE HYD

Return Number

2шт.

6

87328572

HYD VALVE SECTION

1шт.

6

87328572R

REMAN-HYD VALVE

1шт.

6

87328572C

CORE-VALVE HYD

Return Number

1шт.

7

87381965

QUICK MALE COUPLING

1шт.

8

87381964

QUICK MALE COUPLING

1шт.

9

87381963

QUICK MALE COUPLING

1шт.

10

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

11

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

4шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

4шт.
