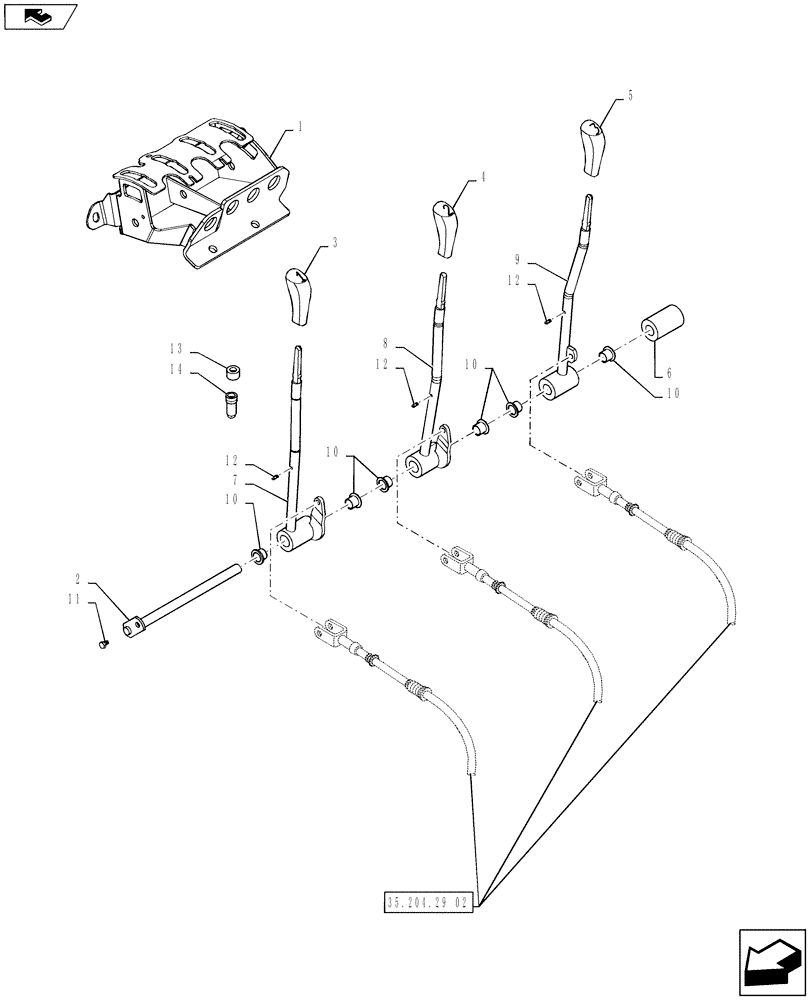

Запчасти Case IH PUMA 130 (35.204.29[01]) - VAR - 396844, 335844 - 3-LEVER REAR CONTROL (35) - HYDRAULIC SYSTEMS

1

84174782

FRAME

1шт.

2

84186398

HANDLED SHAFT

1шт.

3

82037910

KNOB

1st Control Lever

1шт.

4

82037911

KNOB

2nd Control Lever

1шт.

5

82037912

KNOB

3rd Control Lever

1шт.

6

87738556

SPACER,12.1mm ID x 30mm OD x 49mm L

1шт.

7

84174789

LEVER

1шт.

8

84174790

LEVER

1шт.

9

84174791

LEVER

1шт.

10

82035633

BUSHING

6шт.

11

86505761

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

1шт.

12

84209523

SPRING LOCK

3шт.

13

84209516

LOCKING DEVICE

3шт.

14

84209520

LOCKING DEVICE

3шт.
