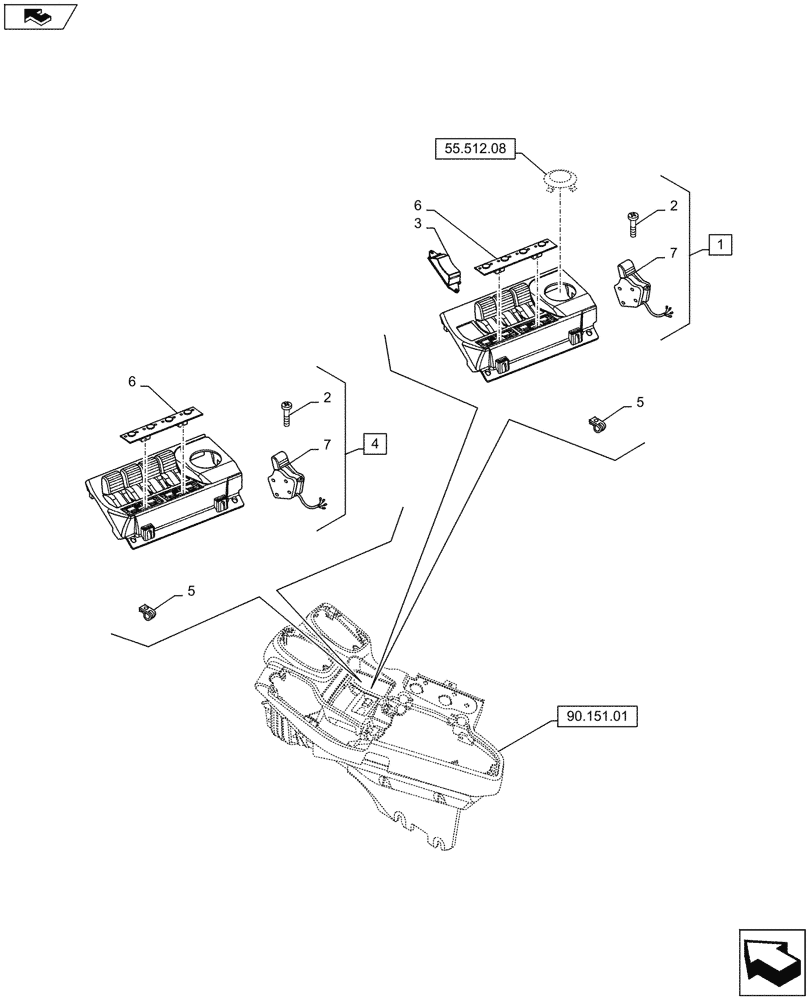

Запчасти Case IH PUMA 130 (55.512.10) - ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES - ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

84202317

TOGGLE SWITCH

Incl 2, 3, 6, 7

1шт.

3 EH RCV, VAR. 330856 - 331856

1шт.

for 8 Pin Connector order PN 87714276 (Qty 2), for 10 Pin Connector order PN 87694703 (Qty 2)

1шт.

2

50631

SCREW,Self Tapping, M6 x 0.5" OAL

8шт.

3

84226110

PLUG,32.5mm W x 92mm L

1шт.

4

84202321

TOGGLE SWITCH

Incl 2, 6, 7

1шт.

4 EH RCV, VAR. 330862 - 332862 - 338851 - 332855 - 331875

1шт.

5 EH RCV, VAR. 331553 - 331875

1шт.

for 8 Pin Connector order PN 87714276 (Qty 2), for 10 Pin Connector order PN 87694703 (Qty 2)

1шт.

5

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

5шт.

6

87613728

PANEL

1шт.

7

87486098

ROCKER SWITCH

EHR, Black

1шт.
