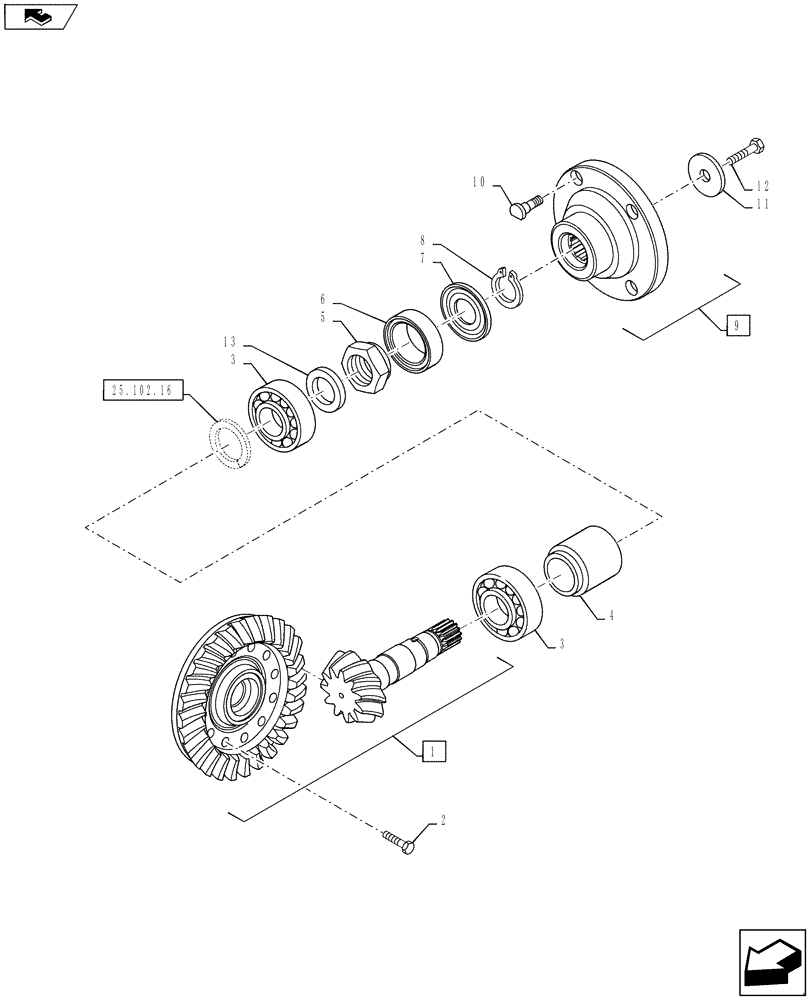

Запчасти Case IH PUMA 145 (25.102.14) - VAR - 330429, 330430 - CL.4 SUSPENDED FRONT AXLE - RING & PINION (25) - FRONT AXLE SYSTEM

1

84289744

BEVEL GEAR,11T/ 28T

Ratio 11/28

1шт.

2

84394067

BOLT

12шт.

3

87387938

TAPERED BEARING,41.27mm ID x 73.46mm OD x 19.63mm W

2шт.

4

87354461

SPACER

1шт.

5

84289762

NUT,M40,1.5mm Pitch

1шт.

6

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

7

87528144

SEAL PROTECTION

1шт.

8

11068476

SNAP RING,M36, Ext

1шт.

9

87350786

FLANGE

Incl 10

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

4шт.

11

84293852

WASHER,13.00mm ID x 47.00mm OD x 8.00mm

1шт.

12

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

1шт.

13

84161677

E-RING

1шт.
