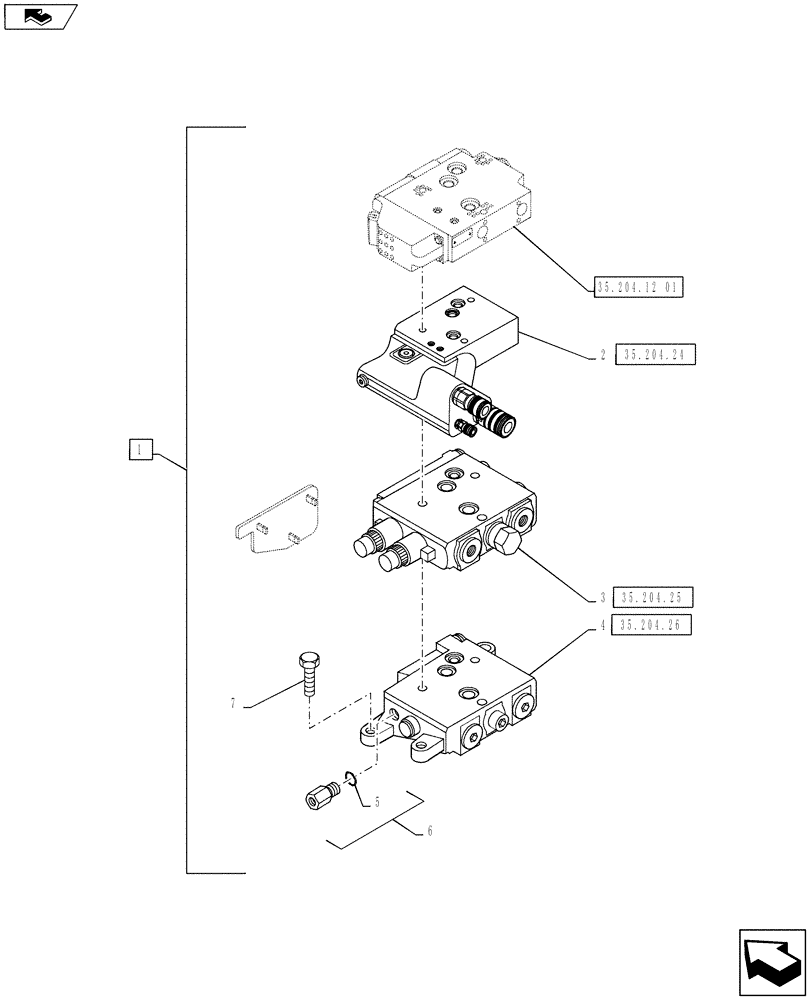

Запчасти Case IH PUMA 145 (35.204.12[02]) - VAR - 331856 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 3 VALVE W/ POWER BEYOND (35) - HYDRAULIC SYSTEMS

1

84230147

CONTROL VALVE

Incl 2 - 7 and Figure 35.204.12 [01]

1шт.

2

84146807

HYD VALVE SECTION

1шт.

3

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130 CVT, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84142195

HYD VALVE SECTION

1шт.

5

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.

6

5191704

CHECK VALVE

Incl 5

1шт.

7

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.
