(35.204.14) - VAR - 743733, 330862, 338851 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE

Запчасти Case IH PUMA 145 (35.204.14) - VAR - 743733, 330862, 338851 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE (35) - HYDRAULIC SYSTEMS

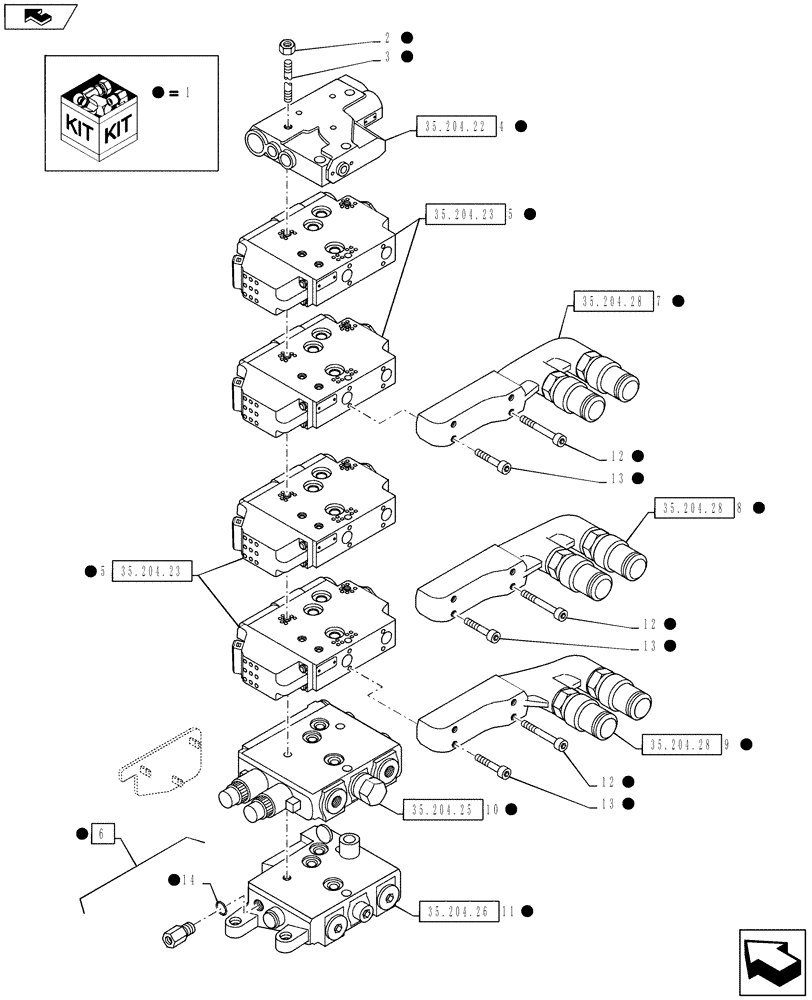

Схема запчастей Case IH PUMA 145 - (35.204.14) - VAR - 743733, 330862, 338851 - EHR CONTROL VALVE - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE (35) - HYDRAULIC SYSTEMS
13
1
1
1
5
3
13
12
1
2
6
1
13
12
1
1
7
12
1
10
1
1
1
8
1
35.204.23
35.204.23
35.204.22
home
35.204.26
35.204.25
35.204.28
35.204.28
35.204.28
1
1
1
4
14
1
11
9
1
1
1
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230144

CONTROL VALVE

Incl 2 - 14

1шт.

2

5195169

NUT,M8

3шт.

3

47129473

THREADED TIE-ROD

3шт.

4

84230200

HYD VALVE SECTION

1шт.

5

84230181

HYD VALVE SECTION

4шт.

84230181R

REMAN-HYD VALVE

PUMA 130 CVX, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

4шт.

84230181C

CORE-VALVE HYD

Return Number

1шт.

6

5191704

CHECK VALVE

Incl 14

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130 CVT, PUMA 145 CVT, PUMA 160 CVT all (12/10-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

84142195

HYD VALVE SECTION

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
