(39.114.03) - VAR - 334821, 743702 - EUROPEAN LOADER READY FOR FRONT HPL - SUPPORTS

Запчасти Case IH PUMA 145 (39.114.03) - VAR - 334821, 743702 - EUROPEAN LOADER READY FOR FRONT HPL - SUPPORTS (39) - FRAMES AND BALLASTING

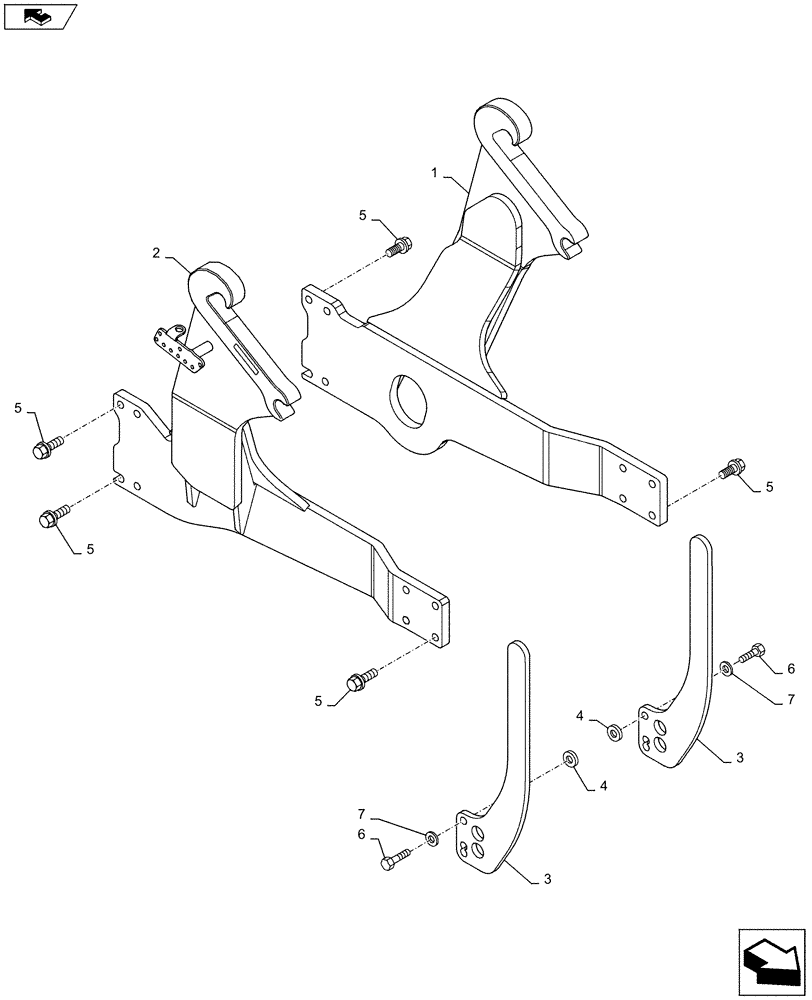

Схема запчастей Case IH PUMA 145 - (39.114.03) - VAR - 334821, 743702 - EUROPEAN LOADER READY FOR FRONT HPL - SUPPORTS (39) - FRAMES AND BALLASTING
5
7
5
7
home
3
3
5
6
4
1
2
5
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87493266

FRAME

LH

1шт.

2

84326857

FRAME

RH

1шт.

3

87652548

BRACKET

2шт.

4

47057709

SPACER,22mm ID x 42mm OD x 10mm L

8шт.

5

82020153

BOLT,Flng, M20 x 2.5 x 58mm, Cl 12.9

16шт.

6

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

7

87602337

LOCK WASHER,21.4mm ID x 30.7mm OD x 3.4mm Thk

4шт.
