(88.033.01) - DIA KIT, PNEUMATIC TRAILER BRAKE CONVERSION KIT (UNIVERSAL TO GERMAN)

Запчасти Case IH PUMA 160 (88.033.01) - DIA KIT, PNEUMATIC TRAILER BRAKE CONVERSION KIT (UNIVERSAL TO GERMAN) (88) - ACCESSORIES

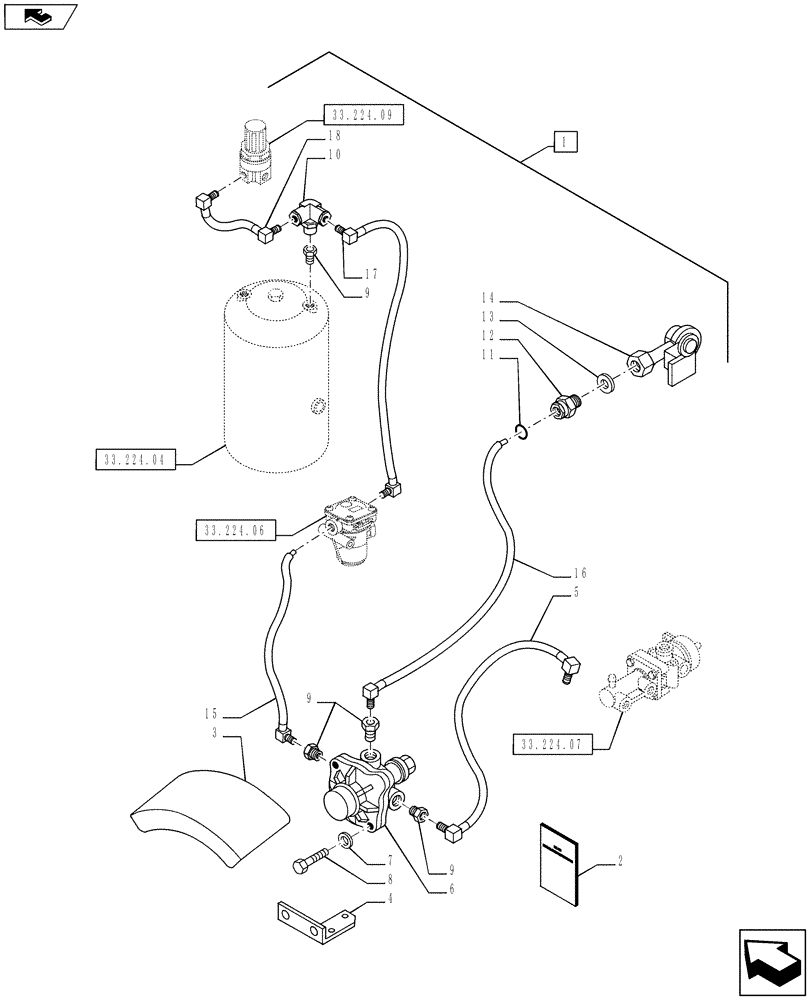

Схема запчастей Case IH PUMA 160 - (88.033.01) - DIA KIT, PNEUMATIC TRAILER BRAKE CONVERSION KIT (UNIVERSAL TO GERMAN) (88) - ACCESSORIES
17
14
9
10
11
1
4
8
3
home
33.224.07
33.224.09
33.224.04
33.224.06
9
2
12
15
9
13
7
18
6
5
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718178024

DIA KIT, TRACTOR

Pneumatic Trailer Brake Conversion, Universal To German, Incl 2 - 18. Adds Third Line for Old Trailers and a Single Guard

1шт.

2

87747286

INSTRUCTION

1шт.

3

87667111

GUARD

1шт.

4

87332066

BRACKET

1шт.

5

84149765

TUBE

1шт.

6

82006250

CONTROL VALVE

1шт.

7

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

11701711

NUT,Hex, M10, Cl 8, ZND

4шт.

9

82036156

FITTING,M22 x 1.5 x NG12

4шт.

10

87571347

HYD CONNECTOR

1шт.

11

82006330

O-RING

1шт.

12

82038456

ADAPTER

1шт.

13

82006328

SEALING WASHER

1шт.

14

82001018

COUPLING

1шт.

15

87519557

TUBE

1шт.

16

87533803

FLEXIBLE HOSE

1шт.

17

87342309

HYDRAULIC HOSE

1шт.

18

84149766

TUBE

1шт.
