(90.102.02) - VAR - 332727, 332737, 332739, 743692, 743693, 743694 - GUARD - ENGINE - PNEUMATIC TRAILER BRAKE

Запчасти Case IH PUMA 160 (90.102.02) - VAR - 332727, 332737, 332739, 743692, 743693, 743694 - GUARD - ENGINE - PNEUMATIC TRAILER BRAKE (90) - PLATFORM, CAB, BODYWORK AND DECALS

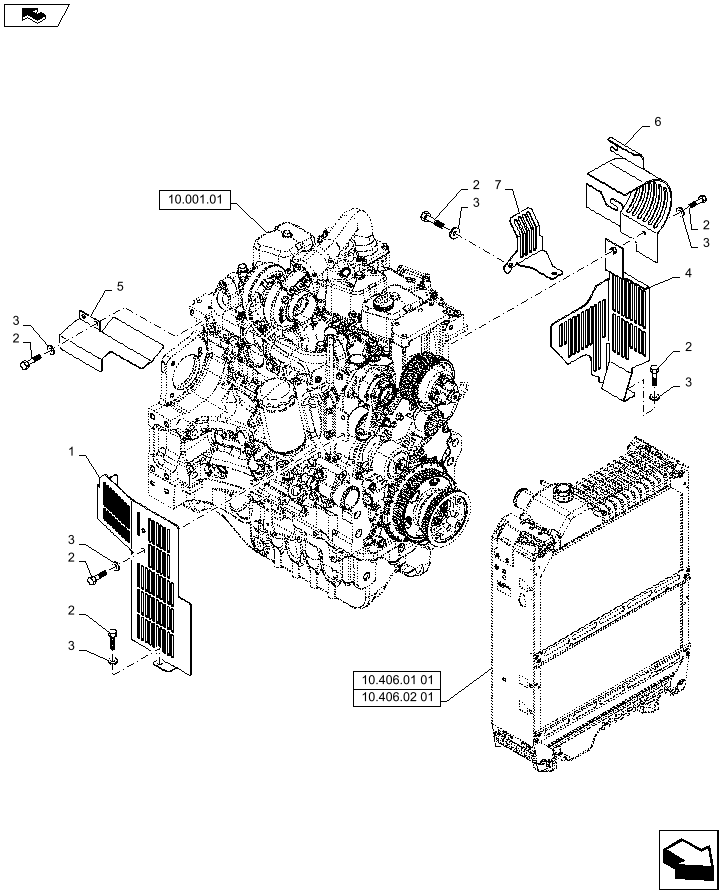

Схема запчастей Case IH PUMA 160 - (90.102.02) - VAR - 332727, 332737, 332739, 743692, 743693, 743694 - GUARD - ENGINE - PNEUMATIC TRAILER BRAKE (90) - PLATFORM, CAB, BODYWORK AND DECALS
10.406.02 01
3
2
2
3
5
10.001.01
6
home
10.406.01 01
2
2
3
4
7
3
1
3
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84144307

GUARD

Alternator

1шт.

2

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

4

84145180

GUARD

Engine

1шт.

5

87590024

SHIELD

A/C Compressor

1шт.

6

84144615

GUARD

w/Airbrakes

1шт.

7

87541648

GUARD

1шт.
