(90.124.04) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - SUSPENSION ASSY & COMPONENTS

Запчасти Case IH PUMA 160 (90.124.04) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - SUSPENSION ASSY & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

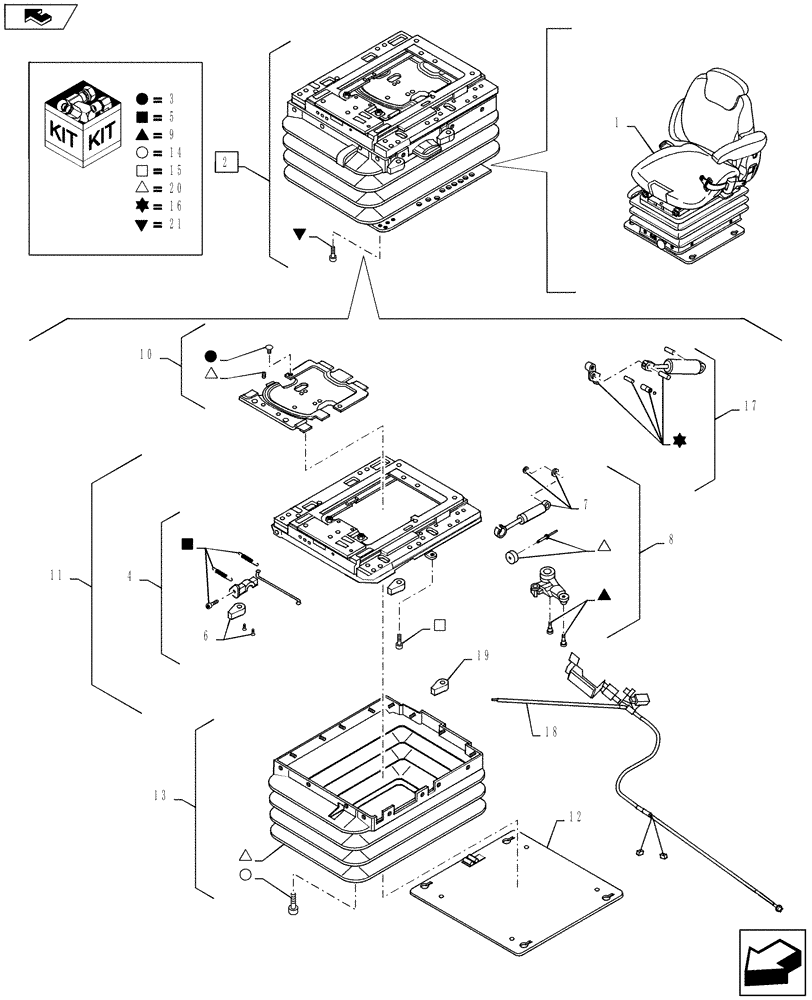

Схема запчастей Case IH PUMA 160 - (90.124.04) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - SUSPENSION ASSY & COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
20
21
12
10
8
15
3
20
5
7
16
20
5
17
15
14
4
3
5
13
15
20
2
19
3
11
14
20
21
1
18
9
16
16
21
6
14
home
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87486984

SEAT

Non-Heated, EHR, STD Build VAR 390709

1шт.

1

84215889

DRIVER SEAT

Non-Heated, Mech Remotes, VAR 333709

1шт.

1

87486990

SEAT

Heated, EHR, VAR 330709, 743715

1шт.

1

84171102

SEAT

Heated, Mech Remotes, VAR 332709

1шт.

2

NSS

NOT SOLD SEPARAT

Seat Suspension, ASSY, Incl in 1, Incl 21, STD Build VAR 390709 and 333709

1шт.

2

84191066

SUSPENSION

Incl 21, VAR 330709, 743715 and 332709

1шт.

3

84191006

REPAIR KIT

1шт.

4

84190989

ADJUSTER

Incl 5, 6

1шт.

5

84191015

REPAIR KIT

1шт.

6

1472163

HANDLE

1шт.

7

84190985

SHOCK ABSORBER

1шт.

8

84190983

SHOCK ABSORBER

Incl 7, 9, 20

1шт.

9

84191002

REPAIR KIT

1шт.

10

84190947

COVER

Incl 3, 20

1шт.

11

84190966

PLATE

Incl 4, 15

1шт.

12

84191021

PLATE

1шт.

13

84190978

BELLOWS

Incl 14, 20

1шт.

14

84191003

REPAIR KIT

1шт.

15

84191010

REPAIR KIT

1шт.

16

84190998

SERVICE KIT

1шт.

17

84191071

KIT

Incl 16

1шт.

18

84190970

WIRE HARNESS

Seat Suspension, STD Build VAR 390709 and 333709

1шт.

18

84191074

WIRE HARNESS

Seat Suspension, VAR 330709, 743715 and 332709

1шт.

19

82035123

HANDLE

1шт.

20

84190975

REPAIR KIT

1шт.

21

84191020

REPAIR KIT

1шт.
