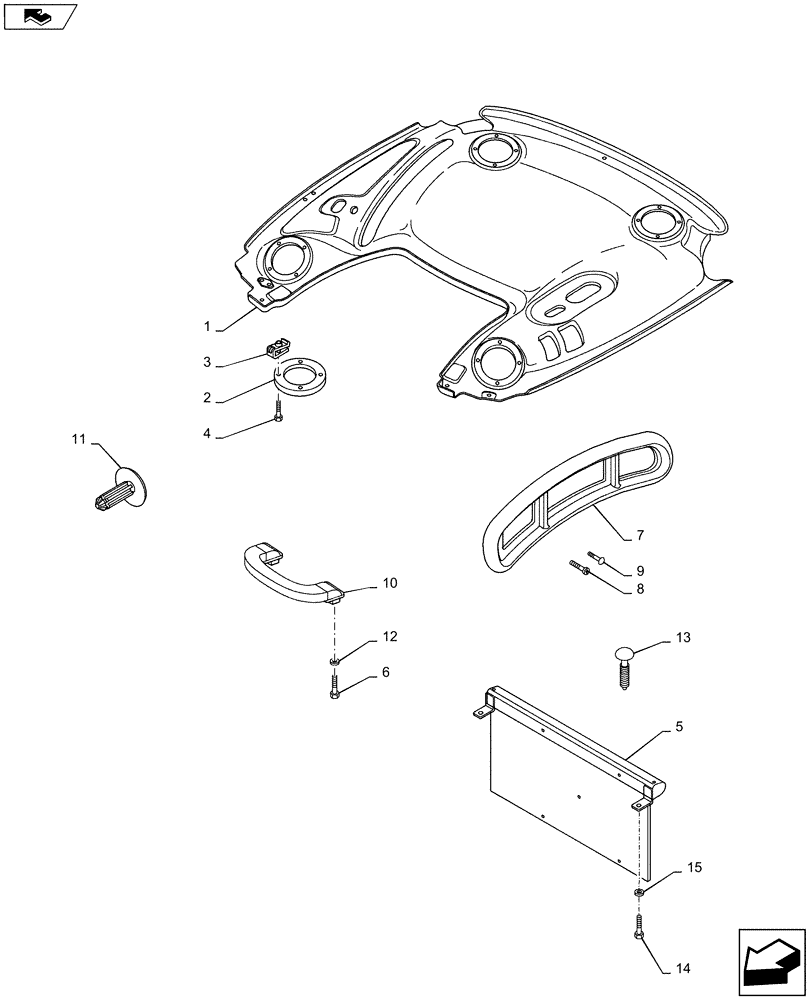

Запчасти Case IH PUMA 160 (90.160.09[01]) - VAR - 330827, 743710 - ROOF WITH HIGH PROFILE WITH HIGH VISIBILITY PANEL - HEADLINER - ISO - C9018 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87521214

ROOF LINING

1шт.

2

82022875

GRILLE,185mm OD

Speaker

2шт.

3

81872135

NUT,Retaining, M4.20

8шт.

4

15642707

SCREW,Pozidriv Pan Hd, M3.5 x 16mm

8шт.

5

82028310

SUN CURTAIN

1шт.

6

10978221

BOLT,Hex, M5 x 25mm, Cl 8.8, Full Thd

2шт.

7

87673408

CONSOLE

Radio

1шт.

7

87673403

CONSOLE

Radio

7шт.

Telescopic/Heated/Remote Adjust Mirrors only, VAR.330827 (Commercial Feature 743710)

1шт.

8

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

9

82033699

PLASTIC PLUG,6.8mm D x 35mm L, Grey

4шт.

10

84227380

HANDLE

Support

1шт.

11

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

1шт.

12

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

13

81870039

FASTENER,M8 x 1.5 x 22mm

1шт.

14

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

15

12605274

WASHER

2шт.
